MTPS8085P
EMITTER IR 850NM 100MA TO-18Manufacturer: Marktech Optoelectronics
Categories: LED Emitters - Infrared, UV, Visible
Quality Control: Learn More

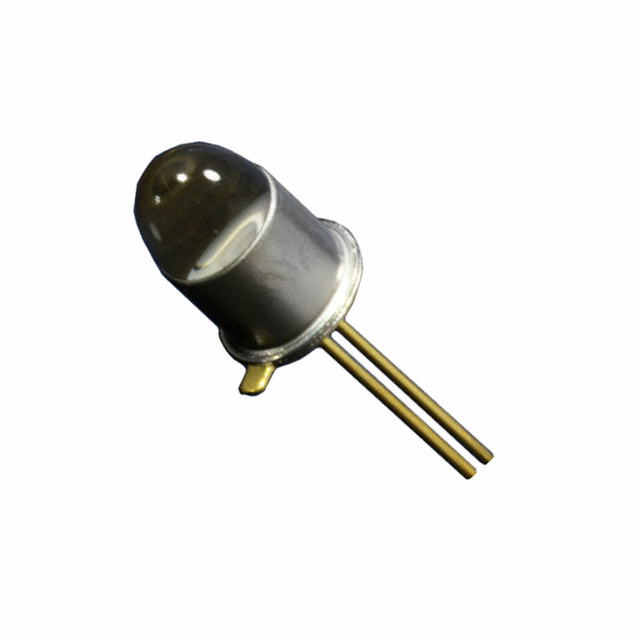

Marktech Optoelectronics MTPS8085P is an infrared (IR) emitter from the Point Source series. This TO-18-2 metal can package component offers a peak wavelength of 850nm and a narrow viewing angle of 5°. It is designed for a maximum DC forward current of 100mA and a typical forward voltage of 1.7V. The through-hole mounting type and TO-18-2 metal can package are standard for many optical sensing applications. Operating within a temperature range of -20°C to 85°C, this emitter is suitable for use in industries such as industrial automation, security systems, and medical devices where precise infrared emission is critical.
Additional Information
Series: Point SourceRoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | TO-18-2 Metal Can |
| Wavelength | 850nm |
| Mounting Type | Through Hole |
| Type | Infrared (IR) |
| Orientation | Top View |
| Operating Temperature | -20°C ~ 85°C (TA) |
| Voltage - Forward (Vf) (Typ) | 1.7V |
| Viewing Angle | 5° |
| Current - DC Forward (If) (Max) | 100mA |
| Radiant Intensity (Ie) Min @ If | - |
