MTMD7885T38

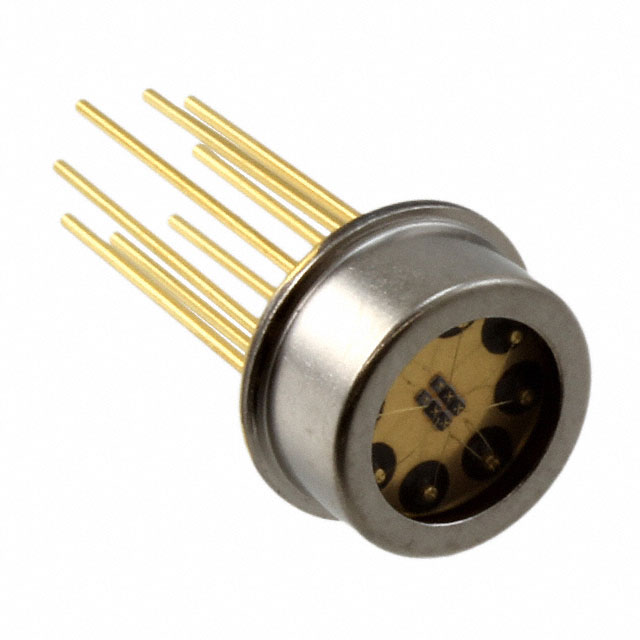

EMITTER IR MULTI-NM 100MA TO-5-8Manufacturer: Marktech Optoelectronics
Categories: LED Emitters - Infrared, UV, Visible
Quality Control: Learn More
Infrared (IR), Visible Emitter 850nm (x2), 810nm (x2), 770nm (x2) 1.4V (x2), 1.55V (x2), 1.6V (x2) 100mA (x2), 100mA (x2), 50mA (x2) TO-5 Variant, 8 Leads, Lens Top Metal Can
Additional Information
Series: -RoHS Status: Request inventory verificationManufacturer Lead Time: 8 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | TO-5 Variant, 8 Leads, Lens Top Metal Can |
| Wavelength | 850nm (x2), 810nm (x2), 770nm (x2) |
| Mounting Type | Through Hole |
| Type | Infrared (IR), Visible |
| Orientation | Top View |
| Operating Temperature | -20°C ~ 85°C (TA) |
| Voltage - Forward (Vf) (Typ) | 1.4V (x2), 1.55V (x2), 1.6V (x2) |
| Viewing Angle | - |
| Current - DC Forward (If) (Max) | 100mA (x2), 100mA (x2), 50mA (x2) |
| Radiant Intensity (Ie) Min @ If | - |
