MTE3650L2-UV-HP
EMITTER UV 365NM 300MA TO-39Manufacturer: Marktech Optoelectronics
Categories: LED Emitters - Infrared, UV, Visible
Quality Control: Learn More

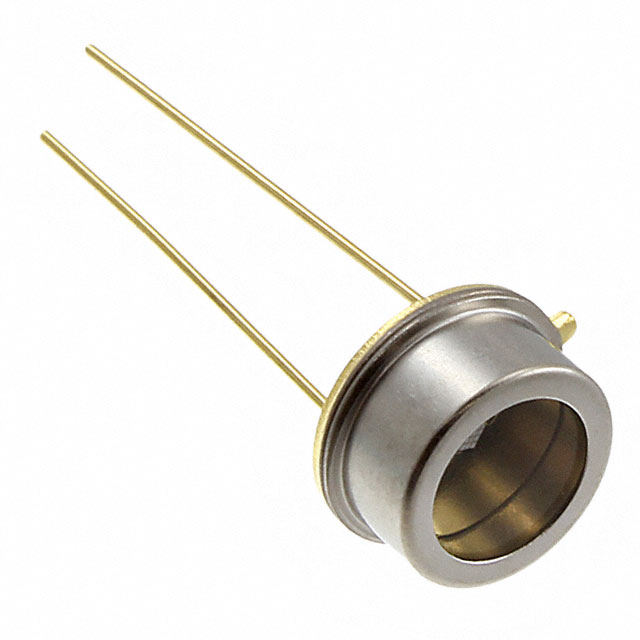

Marktech Optoelectronics MTE3650L2-UV-HP is a high-performance ultraviolet (UV) emitter designed for demanding applications. This TO-39-2 metal can package features a lens top for optimized optical output, delivering a peak wavelength of 365nm. Operating at a forward voltage of 3.5V, it is rated for a maximum continuous forward current of 300mA, producing significant radiant intensity. The component offers a broad viewing angle of 80°, suitable for wide-area illumination and sensing. With an operating temperature range of -20°C to 80°C, this emitter is engineered for reliability in industrial, medical, and scientific instrumentation sectors.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | TO-39-2 Lens Top Metal Can |
| Wavelength | 365nm |
| Mounting Type | Through Hole |
| Type | Ultraviolet (UV) |
| Orientation | Top View |
| Operating Temperature | -20°C ~ 80°C (TA) |
| Voltage - Forward (Vf) (Typ) | 3.5V |
| Viewing Angle | 80° |
| Current - DC Forward (If) (Max) | 300mA |
| Radiant Intensity (Ie) Min @ If | - |
