MTE280H36-UV
EMITTER UV 280NM 40MA TO-5Manufacturer: Marktech Optoelectronics
Categories: LED Emitters - Infrared, UV, Visible
Quality Control: Learn More

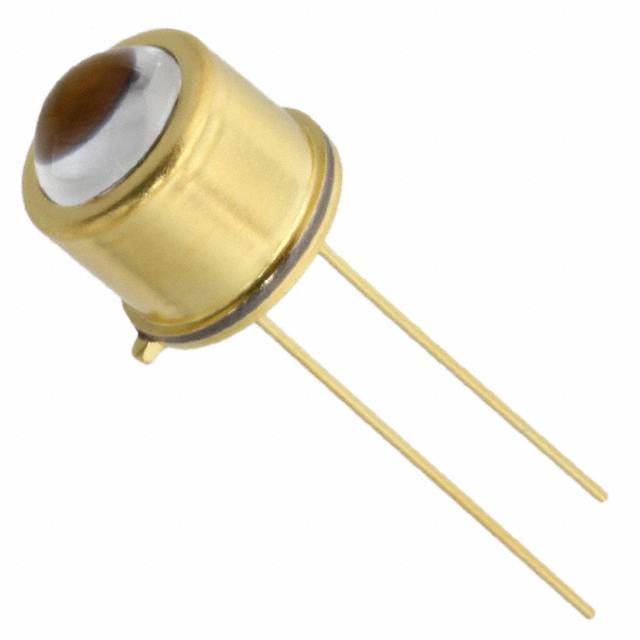

Marktech Optoelectronics MTE280H36-UV is a UV emitter with a peak wavelength of 280nm. This device features a TO-5 variant package with a lens top metal can and two leads, designed for through-hole mounting. The emitter operates with a typical forward voltage of 7V and a maximum forward current of 40mA, with a narrow viewing angle of 6°. Its robust construction supports an operating temperature range of -30°C to 80°C (TA). This component is suitable for applications in germicidal irradiation, water purification, and material curing.
Additional Information
Series: -RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | TO-5 Variant, 2 Leads, Lens Top Metal Can |
| Wavelength | 280nm |
| Mounting Type | Through Hole |
| Type | Ultraviolet (UV) |
| Orientation | Top View |
| Operating Temperature | -30°C ~ 80°C (TA) |
| Voltage - Forward (Vf) (Typ) | 7V |
| Viewing Angle | 6° |
| Current - DC Forward (If) (Max) | 40mA |
| Radiant Intensity (Ie) Min @ If | - |
