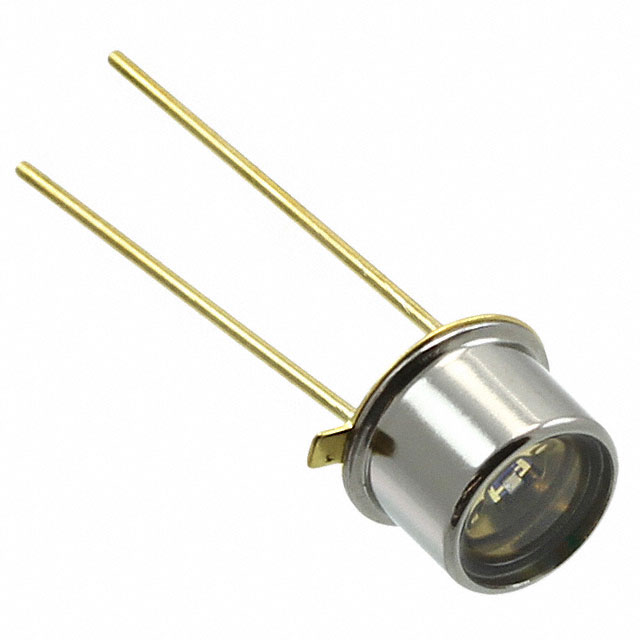

MTE280F11-UV
EMITTER UV 280NM 40MA TO-18Manufacturer: Marktech Optoelectronics
Categories: LED Emitters - Infrared, UV, Visible
Quality Control: Learn More
Marktech Optoelectronics MTE280F11-UV is a Through Hole Ultraviolet (UV) Emitter with a peak wavelength of 280nm. This component features a TO-18-2 Metal Can package designed for top view orientation. The device operates with a typical forward voltage of 7V and a maximum DC forward current of 40mA, delivering a wide viewing angle of 113°. Its robust metal can construction and an operating temperature range of -30°C to 80°C (TA) make it suitable for applications in disinfection and sterilization systems, water purification, and UV curing processes. The MTE280F11-UV is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | TO-18-2 Metal Can |
| Wavelength | 280nm |
| Mounting Type | Through Hole |
| Type | Ultraviolet (UV) |
| Orientation | Top View |
| Operating Temperature | -30°C ~ 80°C (TA) |
| Voltage - Forward (Vf) (Typ) | 7V |
| Viewing Angle | 113° |
| Current - DC Forward (If) (Max) | 40mA |
| Radiant Intensity (Ie) Min @ If | - |
