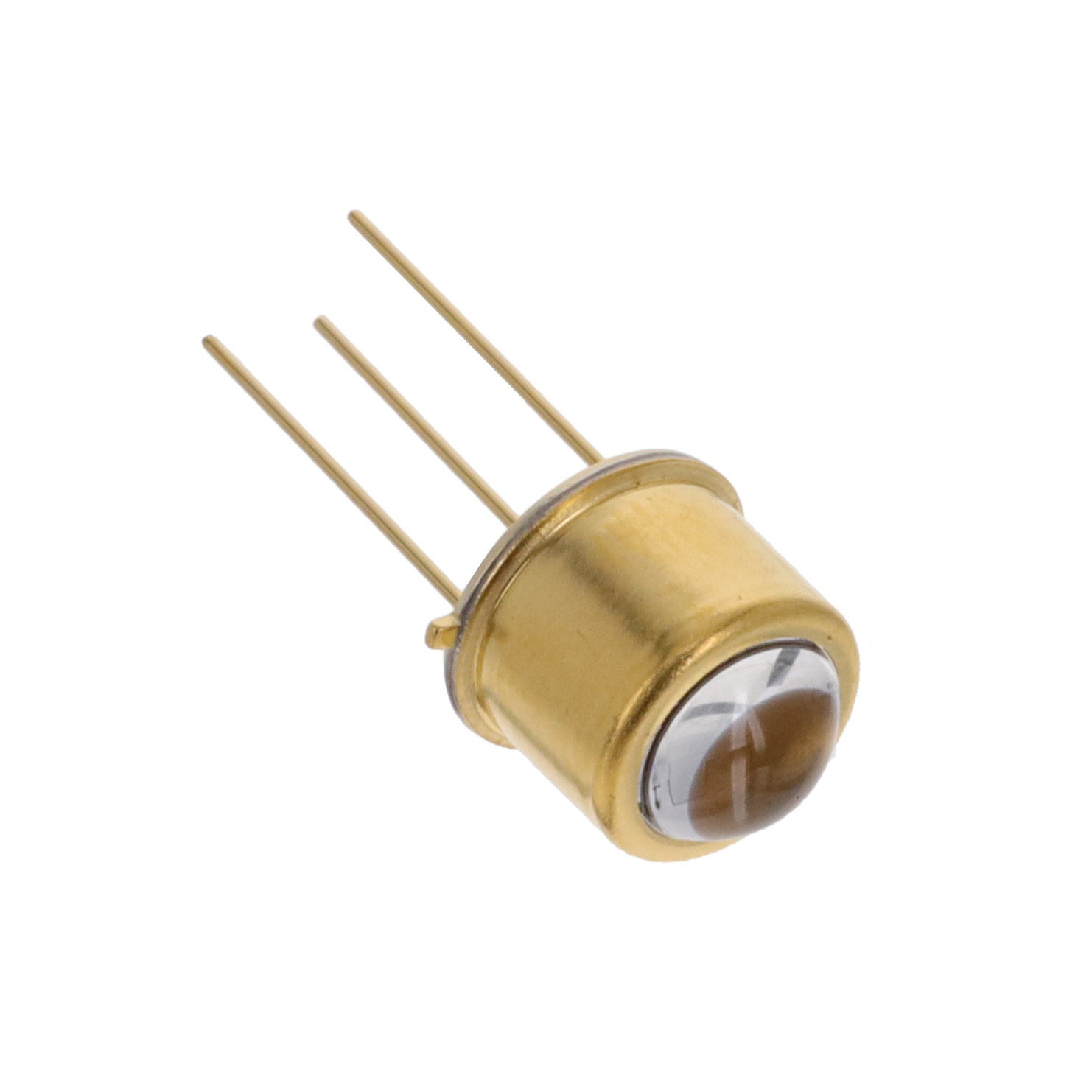

MTE2350D-UV2
235NM 2-DIE TO-39 METAL-CAN DOMEManufacturer: Marktech Optoelectronics
Categories: LED Emitters - Infrared, UV, Visible
Quality Control: Learn More
Ultraviolet (UV) Emitter 235nm (230nm ~ 240nm) 5.75V 100mA 24° TO-39-3 Metal Can
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 8 week(s)Product Status: ActivePackaging: BagDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bag |
| Package / Case | TO-39-3 Metal Can |
| Wavelength | 235nm (230nm ~ 240nm) |
| Mounting Type | Through Hole |
| Type | Ultraviolet (UV) |
| Orientation | Top View |
| Operating Temperature | 60°C (TJ) |
| Voltage - Forward (Vf) (Typ) | 5.75V |
| Viewing Angle | 24° |
| Current - DC Forward (If) (Max) | 100mA |
| Radiant Intensity (Ie) Min @ If | - |
| Grade | - |
| Qualification | - |
