MTE2087NN
EMITTER IR 870NM 100MA TO-46Manufacturer: Marktech Optoelectronics
Categories: LED Emitters - Infrared, UV, Visible
Quality Control: Learn More

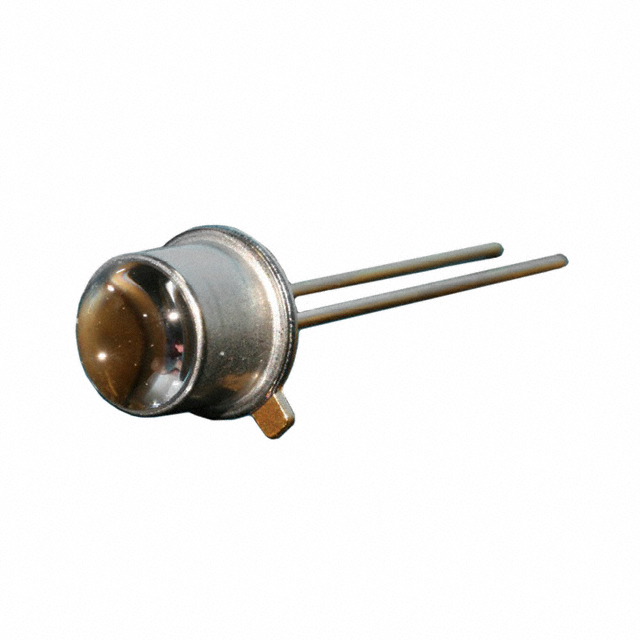

Marktech Optoelectronics MTE2087NN is an infrared emitter designed for demanding applications. This TO-46-2 package features a lens top metal can for precise beam control, emitting at a wavelength of 870nm with a narrow 10° viewing angle. It operates with a maximum DC forward current of 100mA and a typical forward voltage of 1.55V. The component is rated for operation across a wide temperature range of -30°C to 100°C (TA). Its robust construction and specific spectral output make it suitable for use in security systems, industrial automation, and optical sensing.
Additional Information
Series: -RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | TO-46-2 Lens Top Metal Can |
| Wavelength | 870nm |
| Mounting Type | Through Hole |
| Type | Infrared (IR) |
| Orientation | Top View |
| Operating Temperature | -30°C ~ 100°C (TA) |
| Voltage - Forward (Vf) (Typ) | 1.55V |
| Viewing Angle | 10° |
| Current - DC Forward (If) (Max) | 100mA |
| Radiant Intensity (Ie) Min @ If | - |
