MTE2087NJ2
EMITTER IR 870NM 100MA TO-46Manufacturer: Marktech Optoelectronics
Categories: LED Emitters - Infrared, UV, Visible
Quality Control: Learn More

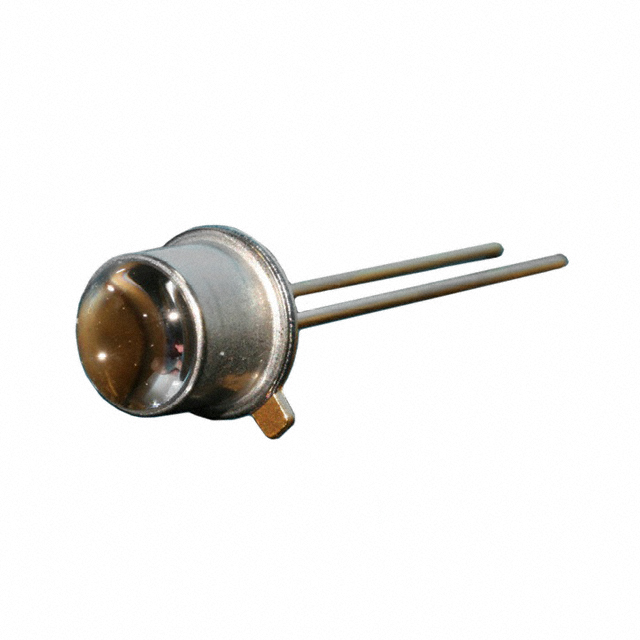

Marktech Optoelectronics MTE2087NJ2 is an infrared (IR) emitter with a peak wavelength of 870nm. This component features a TO-46-2 metal can package with a lens top, providing an 8° viewing angle. It operates with a typical forward voltage of 1.55V and a maximum DC forward current of 100mA. The MTE2087NJ2 is designed for through-hole mounting and has an operating temperature range of -30°C to 100°C (TA). This emitter is commonly utilized in security systems, industrial automation, and optical sensing applications where precise and reliable infrared emission is required. It is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | TO-46-2 Lens Top Metal Can |
| Wavelength | 870nm |
| Mounting Type | Through Hole |
| Type | Infrared (IR) |
| Orientation | Top View |
| Operating Temperature | -30°C ~ 100°C (TA) |
| Voltage - Forward (Vf) (Typ) | 1.55V |
| Viewing Angle | 8° |
| Current - DC Forward (If) (Max) | 100mA |
| Radiant Intensity (Ie) Min @ If | - |
