MTG7-002S-MLE00-GR-0001
LED MOD CREE ML-E GRN LNR STRPManufacturer: Marktech Optoelectronics
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More
Marktech Optoelectronics Cree ML-E series MTG7-002S-MLE00-GR-0001 is a green linear LED module designed for high-performance lighting applications. This module operates with a typical forward voltage of 3.45V and a maximum forward current of 350mA, with a test current of 150mA. The light output is centered at a wavelength of 528nm, providing a distinct green hue. The module features a flat lens type and offers a wide 125° viewing angle. Its dimensions are 76.20mm in length and 9.65mm in width, making it suitable for integration into various linear lighting configurations. This component is commonly utilized in automotive lighting, architectural lighting, and industrial illumination systems where specific color output and efficient light distribution are critical.
Additional Information
Series: Cree ML-ERoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: -Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | - |
| Color | Green |
| Wavelength | 528nm |
| Size / Dimension | 76.20mm L x 9.65mm W |
| Type | LED Module |
| Configuration | Linear Light Strip |
| Voltage - Forward (Vf) (Typ) | 3.45V |
| Height | - |
| Current - Test | 150mA |
| Viewing Angle | 125° |
| Lens Type | Flat |
| Current - Max | 350mA |
| Lumens/Watt @ Current - Test | - |
| CCT (K) | - |
| CRI (Color Rendering Index) | - |
| Light Emitting Surface (LES) | - |
| Temperature - Test | - |
| Luminous Flux @ Current/Temperature | - |
Request a Quote
Clients Also Buy

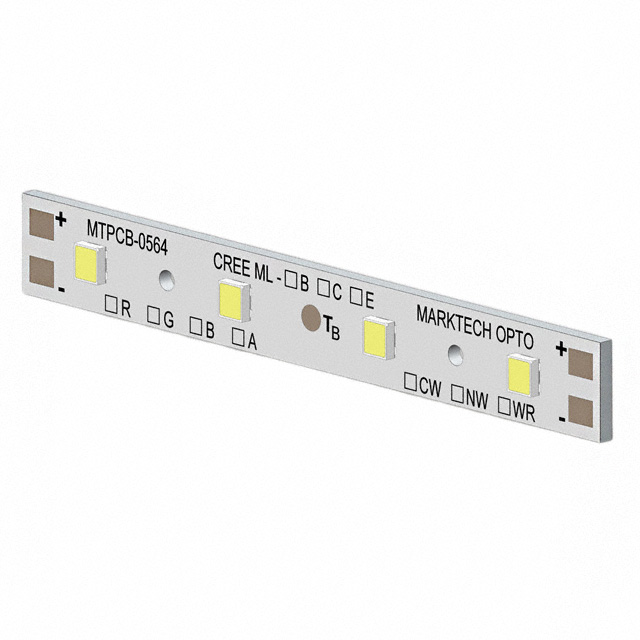

MTG7-002S-MLE00-BL-0T01
