MTG7-001I-XTEHV-WR-L9E7
LED MOD CREE XTE STARBRD 3000KManufacturer: Marktech Optoelectronics
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More

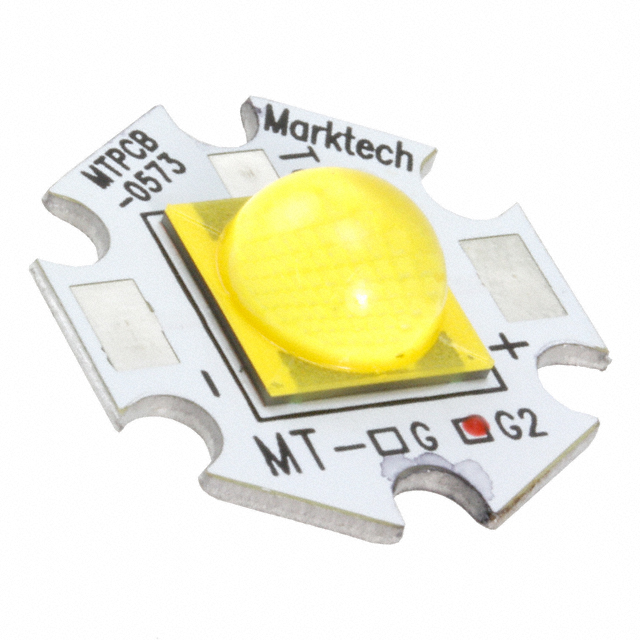

Marktech Optoelectronics MTG7-001I-XTEHV-WR-L9E7 is a Cree XTE-HV series LED module designed for high-performance lighting applications. This warm white module features a 3000K color temperature and is configured on a starboard for efficient thermal management. Operating with a typical forward voltage of 48V, it achieves a luminous flux of 84 lumens at a test current of 22mA, with a luminous efficacy of 80 lm/W at this current and temperature. The maximum recommended operating current is 66mA. This component is suitable for use in general lighting, architectural lighting, and industrial illumination systems where consistent color and reliable performance are critical. The module has a 19.90mm diameter and a domed lens type, with a wide 115° viewing angle.
Additional Information
Series: Cree XTE-HVRoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: -Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | - |
| Color | White, Warm |
| Wavelength | - |
| Size / Dimension | 19.90mm Dia |
| Type | LED Module |
| Configuration | Starboard |
| Voltage - Forward (Vf) (Typ) | 48V |
| Height | - |
| Current - Test | 22mA |
| Viewing Angle | 115° |
| Lens Type | Domed |
| Current - Max | 66mA |
| Lumens/Watt @ Current - Test | 80 lm/W |
| CCT (K) | 3000K |
| CRI (Color Rendering Index) | - |
| Light Emitting Surface (LES) | - |
| Temperature - Test | 85°C |
| Luminous Flux @ Current/Temperature | 84lm (81lm ~ 87lm) |
