FL1M-6CW-2-R2V
LED RED 6MM NUT 2VDC STKManufacturer: Mallory Sonalert Products Inc.
Categories: Panel Indicators, Pilot Lights
Quality Control: Learn More

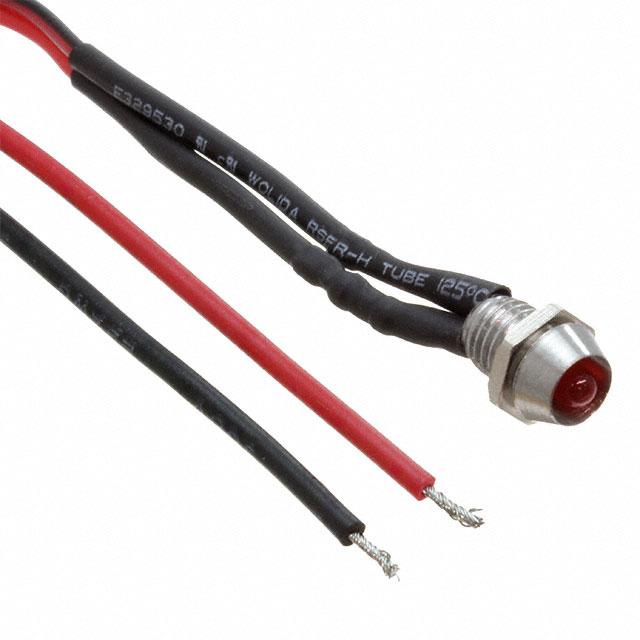

Mallory Sonalert Products Inc. FL1M Series LED panel indicator, part number FL1M-6CW-2-R2V, is a robust solution for visual status indication. This red LED features a 6mm panel cutout diameter and operates at a nominal voltage of 2VDC with a current draw of 20mA. Delivering a brightness range of 1000 to 1500mcd, it provides clear visibility with a 35° viewing angle. The component is supplied with 7.3" (185.42mm) wire leads for convenient termination and boasts IP50 ingress protection. Its durable construction and reliable performance make it suitable for applications in industrial automation, control panels, and electronic instrumentation.
Additional Information
Series: FL1MRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Current | 20mA |
| Voltage | 2V |
| Type | LED |
| Millicandela Rating | 1000 ~ 1500mcd |
| Termination Style | Wire Leads - 7.3"" (185.42mm) |
| Lens Color | Red |
| Viewing Angle | 35° |
| Ingress Protection | IP50 |
| Ratings | DC |
| Panel Cutout Dimensions | 0.24"" (6.00mm) |
| Wavelength - Peak | - |
| Lens Transparency | - |
| Lamp Color | Red |
| Panel Cutout Shape | Round |
| Lens Style | Round with Flat Top |
| Lens Size | - |
