FL1M-6CW-2-G110V
LED GRN 6MM NUT 110VDC STKManufacturer: Mallory Sonalert Products Inc.
Categories: Panel Indicators, Pilot Lights
Quality Control: Learn More

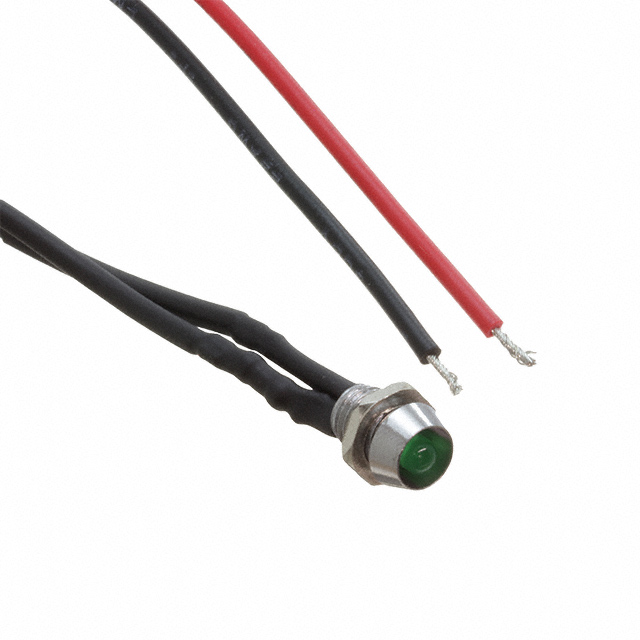

Mallory Sonalert Products Inc. FL1M series LED panel indicator, part number FL1M-6CW-2-G110V, offers a green illumination with a 60° viewing angle. This component operates at 110VDC with a typical current draw of 20mA, achieving a brightness of 8000-10000mcd. Designed for panel mounting, it features a 6mm (0.24") round cutout and is secured with a nut. The termination consists of 7.3" (185.42mm) wire leads, facilitating integration into various systems. This robust indicator, with IP50 ingress protection, is suitable for industrial control panels, automation equipment, and power distribution systems where clear visual status indication is critical.
Additional Information
Series: FL1MRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Current | 20mA |
| Voltage | 110V |
| Type | LED |
| Millicandela Rating | 8000 ~ 10000mcd |
| Termination Style | Wire Leads - 7.3"" (185.42mm) |
| Lens Color | Green |
| Viewing Angle | 60° |
| Ingress Protection | IP50 |
| Ratings | DC |
| Panel Cutout Dimensions | 0.24"" (6.00mm) |
| Wavelength - Peak | - |
| Lens Transparency | - |
| Lamp Color | Green |
| Panel Cutout Shape | Round |
| Lens Style | Round with Flat Top |
| Lens Size | - |
