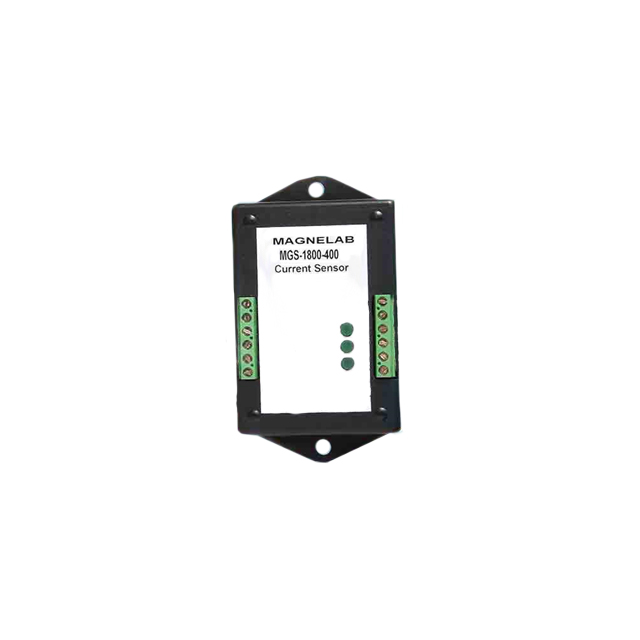

MGS-1800-400
3PH 18"" COILS 400A:4-20MAManufacturer: Magnelab, Inc.
Categories: Current Sensors
Quality Control: Learn More
Current Sensor 400A 1 Channel AC Single Phase/Three Phase Unidirectional Module
Additional Information
Series: MGSRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Box |
| Package / Case | Module |
| Polarization | Unidirectional |
| Sensitivity | - |
| Mounting Type | Chassis Mount |
| Output | Ratiometric, 4mA ~ 20mA |
| Frequency | 40Hz ~ 3kHz |
| Accuracy | ±1% |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply | 8V ~ 35VDC |
| Response Time | - |
| Sensor Type | AC Single Phase/Three Phase |
| Linearity | - |
| For Measuring | AC |
| Current - Supply (Max) | - |
| Current - Sensing | 400A |
| Number of Channels | 1 |
