MX29GL256FHT2I-90Q
IC FLASH 256MBIT PARALLEL 56TSOPManufacturer: Macronix
Categories: Memory
Quality Control: Learn More
Macronix's MX29GL256FHT2I-90Q is a 256Mbit NOR Flash memory component from the MX29GL series. This non-volatile memory device features a parallel interface and a memory organization of 32M x 8. It offers a fast 90 ns access time and a 90 ns write cycle time for word/page operations. Designed for surface mount applications, it is housed in a 56-TSOP package, specifically a 56-TFSOP with dimensions of 0.724 inches (18.40mm) width. Operating within a voltage range of 2.7V to 3.6V, this component is rated for an industrial temperature range of -40°C to 85°C (TA). This device is suitable for applications in automotive, industrial, and consumer electronics sectors.
Additional Information
Series: MX29GLRoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 56-TFSOP (0.724"", 18.40mm Width) |
| Mounting Type | Surface Mount |
| Memory Size | 256Mbit |
| Memory Type | Non-Volatile |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Voltage - Supply | 2.7V ~ 3.6V |
| Technology | FLASH - NOR |
| Memory Format | FLASH |
| Supplier Device Package | 56-TSOP |
| Write Cycle Time - Word, Page | 90ns |
| Memory Interface | Parallel |
| Access Time | 90 ns |
| Memory Organization | 32M x 8 |
| Programmable | Not Verified |
Request a Quote
Clients Also Buy

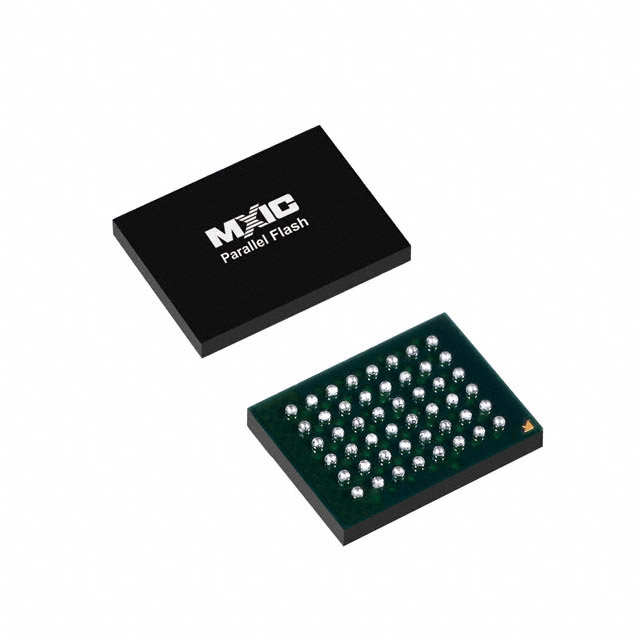

MX29GL320EBXEI-70G
IC FLASH 32MBIT PARALLEL 48LFBGA
MX29GL640ELT2I-70G
IC FLASH 64MBIT PARALLEL 56TSOP

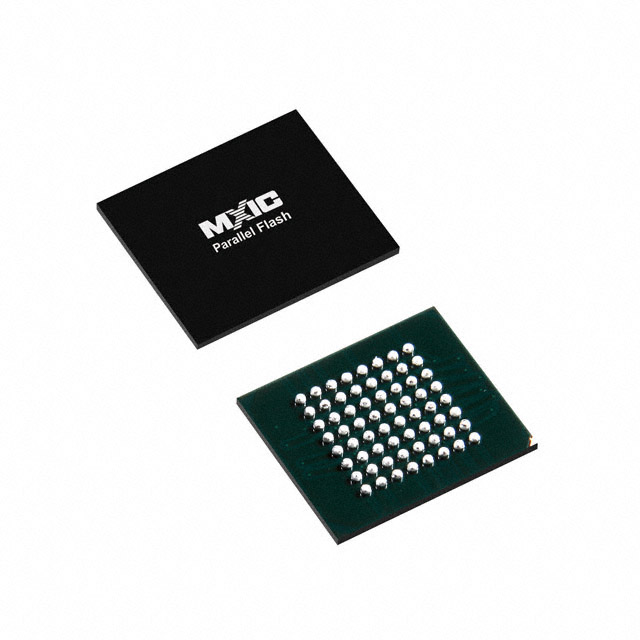

MX29GL256FHXFI-90Q
