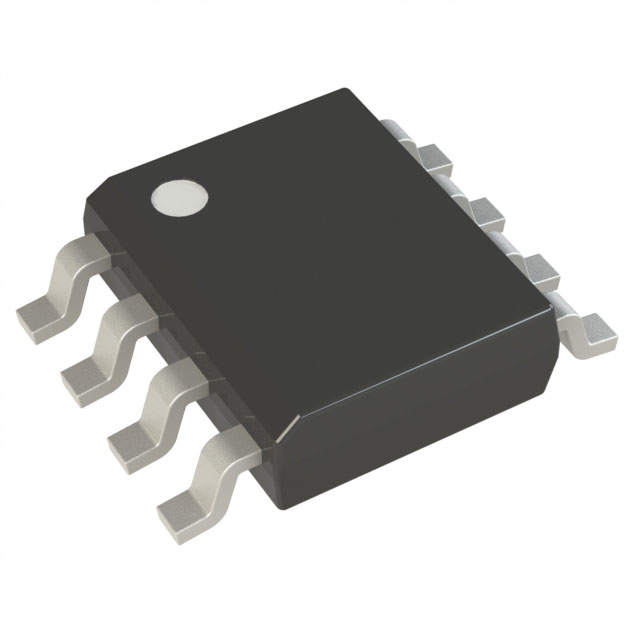

MX25U8035FM1J
IC FLASH 8MBIT SPI/QUAD 8SOPManufacturer: Macronix
Categories: Memory
Quality Control: Learn More
The Macronix MX25U8035FM1J is an 8Mbit NOR Flash memory component from the MXSMIO™ series. This non-volatile memory features a Quad SPI interface, supporting clock frequencies up to 104 MHz with an access time of 6 ns. The memory organization is configurable as 2M x 4, 4M x 2, or 8M x 1. Designed for surface mount applications, it comes in an 8-SOP package. Operating within a voltage range of 1.65V to 2V, this component is suitable for demanding applications across industrial, automotive, and consumer electronics sectors. The operating temperature range is -40°C to 105°C.
Additional Information
Series: MXSMIO™RoHS Status: unknownManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 8-SOIC (0.154"", 3.90mm Width) |
| Mounting Type | Surface Mount |
| Memory Size | 8Mbit |
| Memory Type | Non-Volatile |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Voltage - Supply | 1.65V ~ 2V |
| Technology | FLASH - NOR (SLC) |
| Clock Frequency | 104 MHz |
| Memory Format | FLASH |
| Supplier Device Package | 8-SOP |
| Write Cycle Time - Word, Page | 100µs, 3.6ms |
| Memory Interface | SPI - Quad I/O |
| Access Time | 6 ns |
| Memory Organization | 2M x 4, 4M x 2, 8M x 1 |
