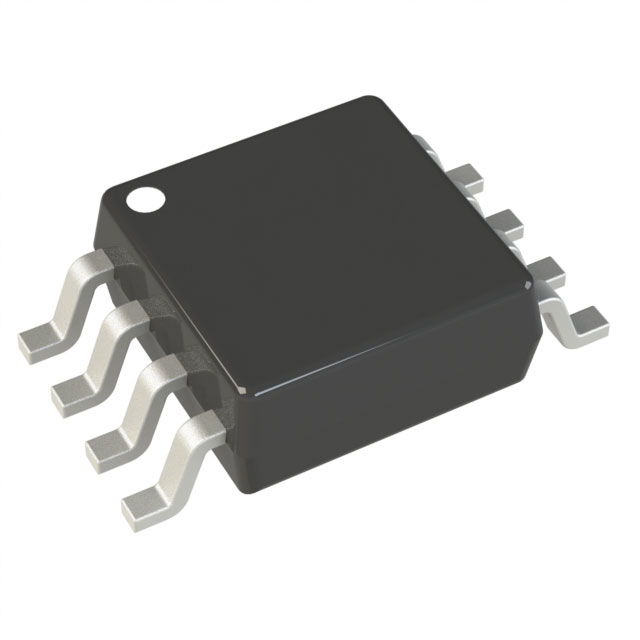

MX25U1632FM2I02
IC FLASH 16MBIT SPI/QUAD 8SOPManufacturer: Macronix
Categories: Memory
Quality Control: Learn More
Macronix MX25U1632FM2I02 is a 16Mbit NOR FLASH memory device from the MXSMIO™ series. This non-volatile memory features SPI and Quad I/O with QPI capabilities, supporting clock frequencies up to 133 MHz and an access time of 6 ns. The memory organization is 2M x 8, and it operates within a supply voltage range of 1.65V to 2V. Designed for surface mount applications, it is housed in an 8-SOP package (8-SOIC). The operating temperature range for this component is -40°C to 85°C. Write cycle times are 40µs for word and 3ms for page. This component is suitable for demanding applications in industrial, automotive, and consumer electronics sectors.
Additional Information
Series: MXSMIO™RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 8-SOIC (0.209"", 5.30mm Width) |
| Mounting Type | Surface Mount |
| Memory Size | 16Mbit |
| Memory Type | Non-Volatile |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Voltage - Supply | 1.65V ~ 2V |
| Technology | FLASH - NOR |
| Clock Frequency | 133 MHz |
| Memory Format | FLASH |
| Supplier Device Package | 8-SOP |
| Write Cycle Time - Word, Page | 40µs, 3ms |
| Memory Interface | SPI - Quad I/O, QPI |
| Access Time | 6 ns |
| Memory Organization | 2M x 8 |
| Programmable | Not Verified |
