MX25R512FBFIL0
IC FLASH 512KBIT SPI/QUAD 8WLCSPManufacturer: Macronix
Categories: Memory
Quality Control: Learn More

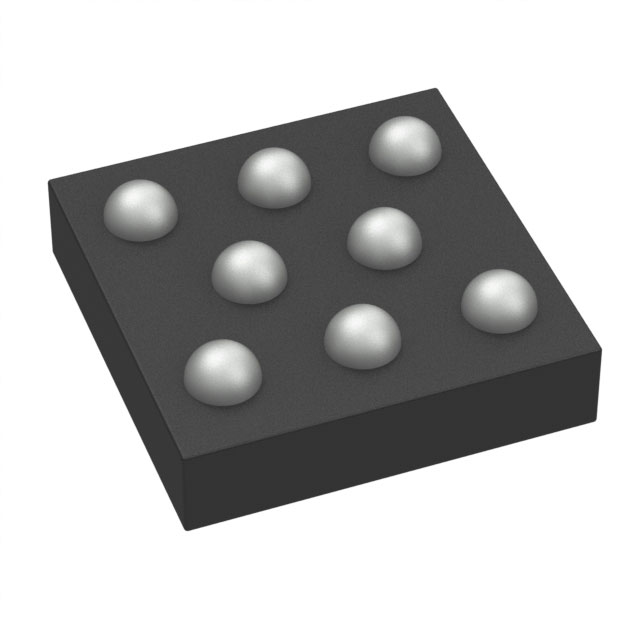

Macronix MX25R512FBFIL0 is a 512Kbit NOR Flash memory device featuring a Quad SPI interface. Operating at a clock frequency of 33 MHz, this non-volatile memory is organized as 64K x 8. The MXSMIO™ series component is supplied in an 8-WLCSP package, suitable for surface mount applications. It operates within a voltage range of 1.65V to 3.6V and has an operating temperature range of -40°C to 85°C. Write cycle times are 100µs for word and 10ms for page. This device is commonly found in portable electronics, industrial control systems, and consumer electronics applications. It is available on tape and reel.
Additional Information
Series: MXSMIO™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-XFBGA, WLCSP |
| Mounting Type | Surface Mount |
| Memory Size | 512Kbit |
| Memory Type | Non-Volatile |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Voltage - Supply | 1.65V ~ 3.6V |
| Technology | FLASH - NOR |
| Clock Frequency | 33 MHz |
| Memory Format | FLASH |
| Supplier Device Package | 8-WLCSP |
| Write Cycle Time - Word, Page | 100µs, 10ms |
| Memory Interface | SPI - Quad I/O |
| Memory Organization | 64K x 8 |
| Programmable | Not Verified |
