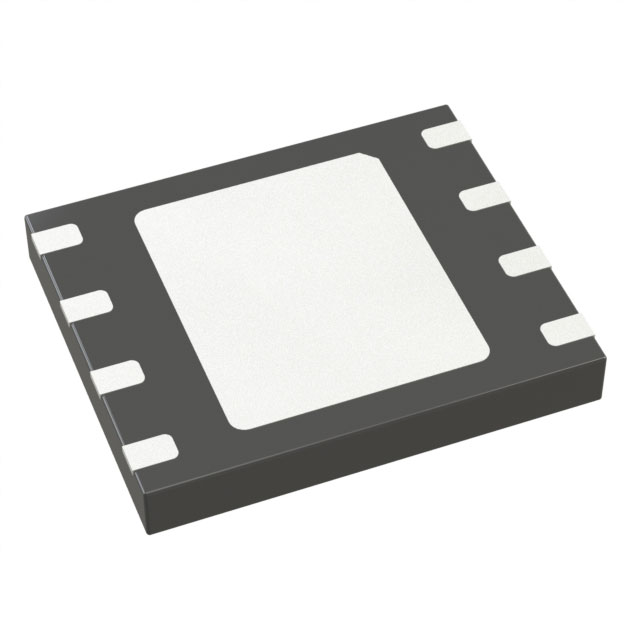

The Macronix MXSMIO™ series MX25L6433FZNJ-08Q is a 64Mbit Serial NOR Flash memory component. This device features a high-speed SPI Quad I/O interface, capable of clock frequencies up to 133 MHz, with an access time of 6 ns. It supports various memory organizations including 16M x 4, 32M x 2, and 64M x 1 bits. The memory type is Non-Volatile, utilizing SLC FLASH-NOR technology. Designed for surface mounting, it is supplied in an 8-WSON (6x5) package. The operating voltage range is 2.65V to 3.6V, with an operating temperature range of -40°C to 105°C. Write cycle times are 60µs for word and 1.6ms for page operations. This component is suitable for applications in consumer electronics, industrial, and networking sectors.
Additional Information
Series: MXSMIO™RoHS Status: RoHS CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 8-WDFN Exposed Pad |
| Mounting Type | Surface Mount |
| Memory Size | 64Mbit |
| Memory Type | Non-Volatile |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Voltage - Supply | 2.65V ~ 3.6V |
| Technology | FLASH - NOR (SLC) |
| Clock Frequency | 133 MHz |
| Memory Format | FLASH |
| Supplier Device Package | 8-WSON (6x5) |
| Grade | - |
| Write Cycle Time - Word, Page | 60µs, 1.6ms |
| Memory Interface | SPI - Quad I/O |
| Access Time | 6 ns |
| Memory Organization | 16M x 4, 32M x 2, 64M x 1 |
| Qualification | - |
