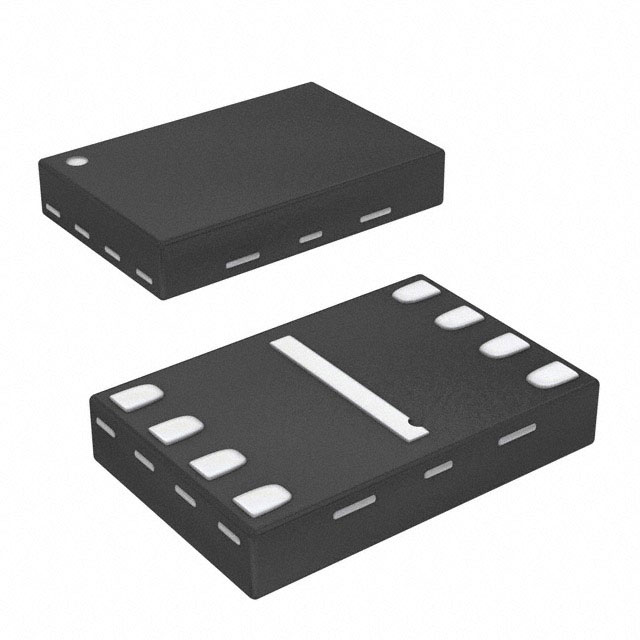

MX25L1006EZUI-10G
IC FLASH 1MBIT SPI 104MHZ 8USONManufacturer: Macronix
Categories: Memory
Quality Control: Learn More
The Macronix MX25L1006EZUI-10G is a 1Mbit NOR Flash memory device from the MX25xxx05/06/08 series. This component features a high-speed SPI interface, supporting clock frequencies up to 104 MHz, and operates with a supply voltage range of 2.7V to 3.6V. Its memory organization is 128K x 8, providing efficient data storage. Designed for surface mounting, it is supplied in an 8-USON (2x3) package, specifically an 8-UFDFN Exposed Pad, presented on a tape and reel. The operating temperature range is -40°C to 85°C. This non-volatile memory is suitable for applications requiring fast read access and reliable storage, commonly found in industrial and consumer electronics. Write cycle times are 50µs for word and 3ms for page operations.
Additional Information
Series: MX25xxx05/06/08RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: Not For New DesignsPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-UFDFN Exposed Pad |
| Mounting Type | Surface Mount |
| Memory Size | 1Mbit |
| Memory Type | Non-Volatile |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Voltage - Supply | 2.7V ~ 3.6V |
| Technology | FLASH - NOR |
| Clock Frequency | 104 MHz |
| Memory Format | FLASH |
| Supplier Device Package | 8-USON (2x3) |
| Write Cycle Time - Word, Page | 50µs, 3ms |
| Memory Interface | SPI |
| Memory Organization | 128K x 8 |
| Programmable | Not Verified |
