JANTXV1N6643US
DIODE GEN PURP 50V 300MA D-5DManufacturer: MACOM Technology Solutions
Categories: Single Diodes
Quality Control: Learn More

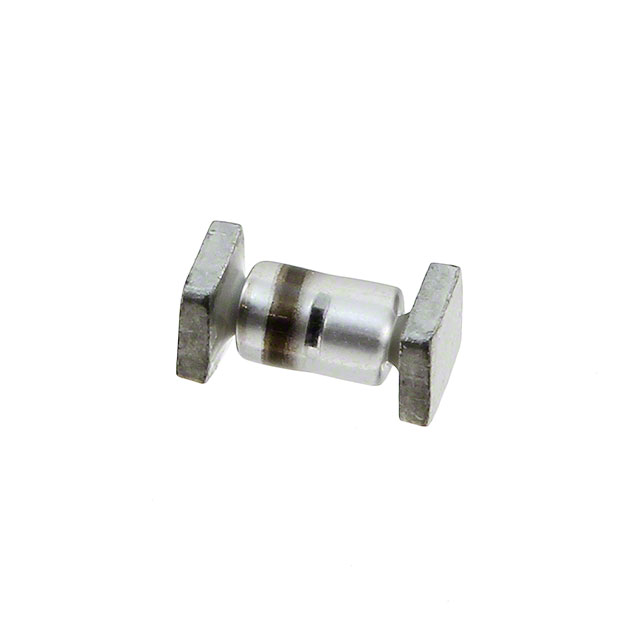

MACOM Technology Solutions JANTXV1N6643US is a general-purpose diode with a 50V reverse voltage rating and a 300mA average rectified current. This device features a fast recovery time of 6ns, suitable for high-speed switching applications. The JANTXV1N6643US is constructed using standard technology and offers a forward voltage of 1.2V at 100mA. It is qualified to MIL-PRF-19500/578 & /609 standards, indicating its suitability for demanding military applications. The diode is packaged in a SQ-MELF, D (D-5D) surface mount case and operates across a junction temperature range of -65°C to 175°C. This component is commonly found in aerospace and defense systems.
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | SQ-MELF, D |
| Mounting Type | Surface Mount |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 6 ns |
| Technology | Standard |
| Capacitance @ Vr, F | - |
| Current - Average Rectified (Io) | 300mA |
| Supplier Device Package | D-5D |
| Operating Temperature - Junction | -65°C ~ 175°C |
| Grade | Military |
| Voltage - DC Reverse (Vr) (Max) | 50 V |
| Voltage - Forward (Vf) (Max) @ If | 1.2 V @ 100 mA |
| Current - Reverse Leakage @ Vr | 100 µA @ 100 V |
| Qualification | MIL-PRF-19500/578 & /609 |
