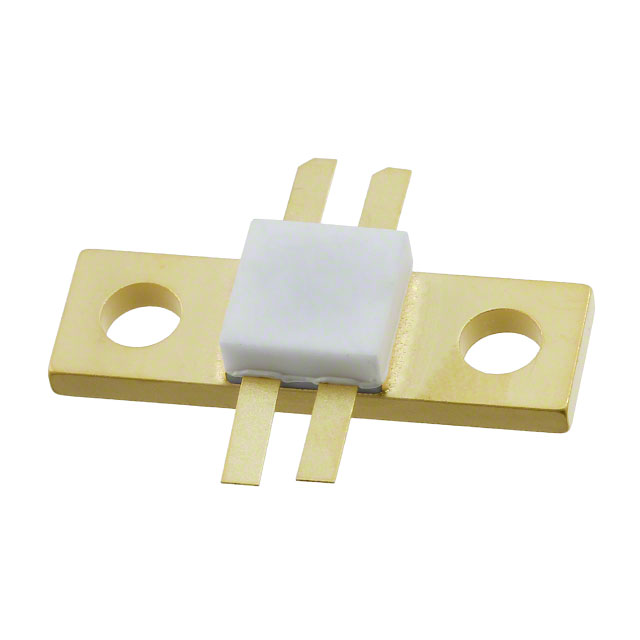

UF2820P
RF MOSFET 28VManufacturer: MACOM Technology Solutions
Categories: RF FETs, MOSFETs
Quality Control: Learn More
MACOM Technology Solutions UF2820P is an N-Channel RF MOSFET designed for high-frequency applications. This component operates across a frequency range of 100MHz to 500MHz, delivering 20W of output power. It offers a gain of 10dB and is rated for 28V test voltage and 65V voltage. The device is supplied in Tray packaging. This RF MOSFET is suitable for use in wireless infrastructure, defense, and aerospace applications where robust RF performance is critical.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 24 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | - |
| Current Rating (Amps) | 2.8A |
| Frequency | 100MHz ~ 500MHz |
| Configuration | N-Channel |
| Power - Output | 20W |
| Gain | 10dB |
| Technology | MOSFET (Metal Oxide) |
| Noise Figure | - |
| Supplier Device Package | - |
| Voltage - Rated | 65 V |
| Voltage - Test | 28 V |
| Current - Test | 200 mA |
