PTVA092407NF-V2-R5
RF MOSFET LDMOS 48V 4HBSOFManufacturer: MACOM Technology Solutions
Categories: RF FETs, MOSFETs
Quality Control: Learn More

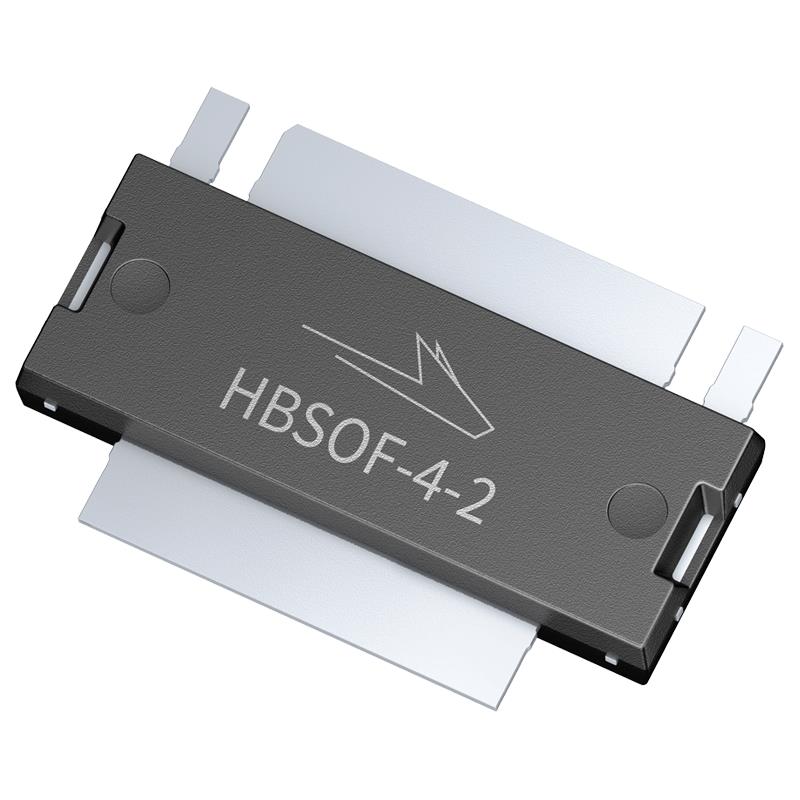

MACOM Technology Solutions PTVA092407NF-V2-R5 is an RF LDMOS power transistor designed for high-power applications. Operating within the 869MHz to 960MHz frequency range, this device delivers a nominal output power of 240W with a typical gain of 22.5dB. It is characterized by a test current of 900mA and a drain voltage rating of 48V, while its breakdown voltage is rated at 105V. The PTVA092407NF-V2-R5 utilizes LDMOS technology for enhanced performance and efficiency. It is supplied in a PG-HBSOF-4-2 package, suitable for surface mounting, and is delivered on tape and reel. This component is commonly employed in base station infrastructure and other demanding RF power amplifier systems.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: 32 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | HBSOF-4-2 |
| Current Rating (Amps) | 10µA |
| Mounting Type | Surface Mount |
| Frequency | 869MHz ~ 960MHz |
| Power - Output | 240W |
| Gain | 22.5dB |
| Technology | LDMOS |
| Noise Figure | - |
| Supplier Device Package | PG-HBSOF-4-2 |
| Voltage - Rated | 105 V |
| Voltage - Test | 48 V |
| Current - Test | 900 mA |
