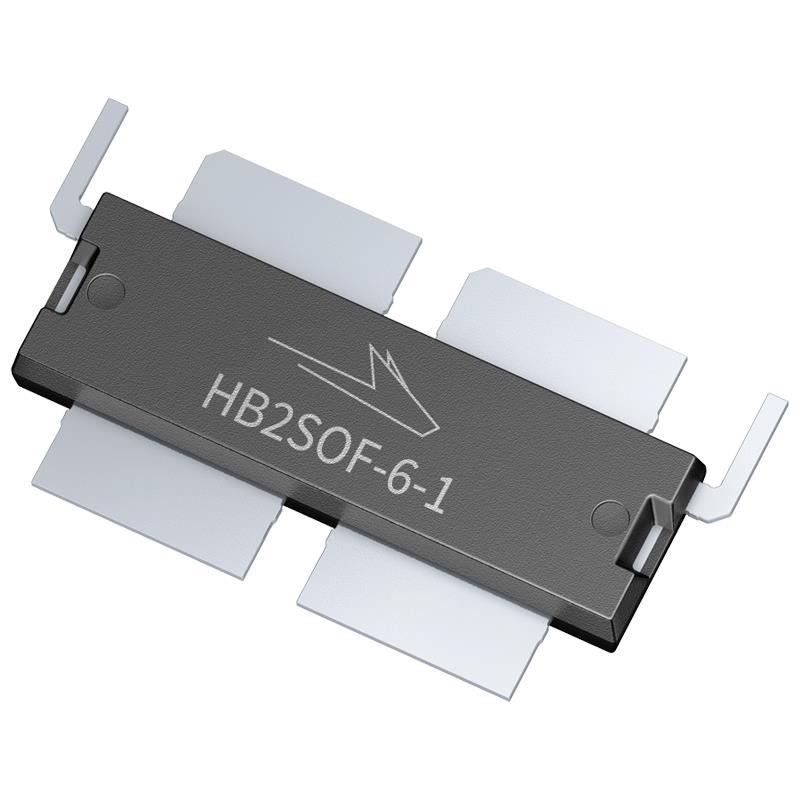

PTRA097008NB-V1-R2
RF MOSFET LDMOS 50V 6HB2SOFManufacturer: MACOM Technology Solutions
Categories: RF FETs, MOSFETs
Quality Control: Learn More
MACOM Technology Solutions PTRA097008NB-V1-R2 is an LDMOS RF power transistor designed for high-power applications. This device operates within the 920MHz to 960MHz frequency range, delivering a typical output power of 630W with a 19dB gain. It features a 50V drain-source voltage rating and a 600mA test current. The PTRA097008NB-V1-R2 is housed in a PG-HB2SOF-6-1 package, suitable for surface mount configurations. This component finds application in base station infrastructure and other high-frequency power amplification systems. The device is supplied on tape and reel for automated assembly.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: 32 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | HB2SOF-6-1 |
| Current Rating (Amps) | 10µA |
| Mounting Type | Surface Mount |
| Frequency | 920MHz ~ 960MHz |
| Configuration | Dual, Common Source |
| Power - Output | 630W |
| Gain | 19dB |
| Technology | LDMOS |
| Noise Figure | - |
| Supplier Device Package | PG-HB2SOF-6-1 |
| Voltage - Rated | 105 V |
| Voltage - Test | 50 V |
| Current - Test | 600 mA |
