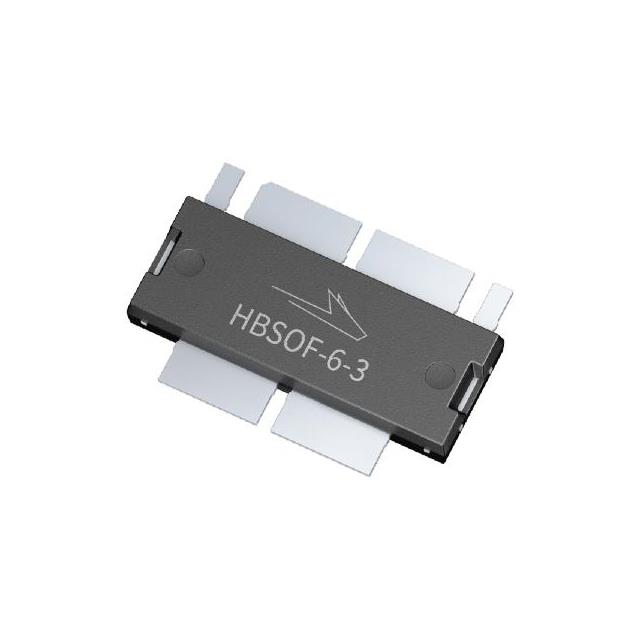

PTRA084858NF-V1-R5
RF MOSFET LDMOS 48V 6HBSOFManufacturer: MACOM Technology Solutions
Categories: RF FETs, MOSFETs
Quality Control: Learn More
MACOM Technology Solutions PTRA084858NF-V1-R5 is a high-power RF LDMOS transistor designed for demanding applications. This component operates within the 730MHz to 960MHz frequency range, delivering a robust 615W of output power. It features a typical gain of 19dB and is rated for a drain-source voltage of 48V. Engineered with LDMOS (Dual) technology, this device is suitable for power amplification stages in base station infrastructure, industrial heating, and other high-power RF systems. The PTRA084858NF-V1-R5 is provided in a PG-HBSOF-6-3 package, facilitating surface mounting and is supplied on tape and reel for automated assembly. The device is tested at a drain current of 500mA, with a nominal breakdown voltage of 105V.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: 32 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | PG-HBSOF-6-3 |
| Current Rating (Amps) | 10µA |
| Mounting Type | Surface Mount |
| Frequency | 730MHz ~ 960MHz |
| Configuration | - |
| Power - Output | 615W |
| Gain | 19dB |
| Technology | LDMOS (Dual) |
| Noise Figure | - |
| Supplier Device Package | PG-HBSOF-6-3 |
| Voltage - Rated | 105 V |
| Voltage - Test | 48 V |
| Current - Test | 500 mA |
