PTRA082808NF-V1-R5
RF MOSFET LDMOS 48V 6HBSOFManufacturer: MACOM Technology Solutions
Categories: RF FETs, MOSFETs
Quality Control: Learn More

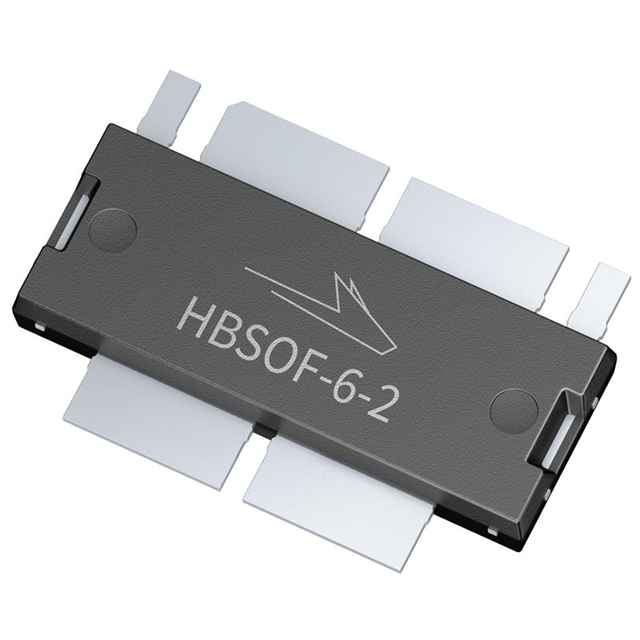

MACOM Technology Solutions PTRA082808NF-V1-R5 is a high-power RF LDMOS transistor designed for demanding applications. This dual, common source device operates within the 790MHz to 820MHz frequency range, delivering 280W of output power at a 48V test voltage. Achieving a gain of 15.5dB with a 200mA test current, it is suitable for base station infrastructure and other high-frequency power amplification needs. The PTRA082808NF-V1-R5 is housed in a PG-HBSOF-6-2 package, facilitating surface mounting.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: 32 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | HBSOF-6-2 |
| Current Rating (Amps) | 10µA |
| Mounting Type | Surface Mount |
| Frequency | 790MHz ~ 820MHz |
| Configuration | Dual, Common Source |
| Power - Output | 280W |
| Gain | 15.5dB |
| Technology | LDMOS |
| Noise Figure | - |
| Supplier Device Package | PG-HBSOF-6-2 |
| Voltage - Rated | 105 V |
| Voltage - Test | 48 V |
| Current - Test | 200 mA |
