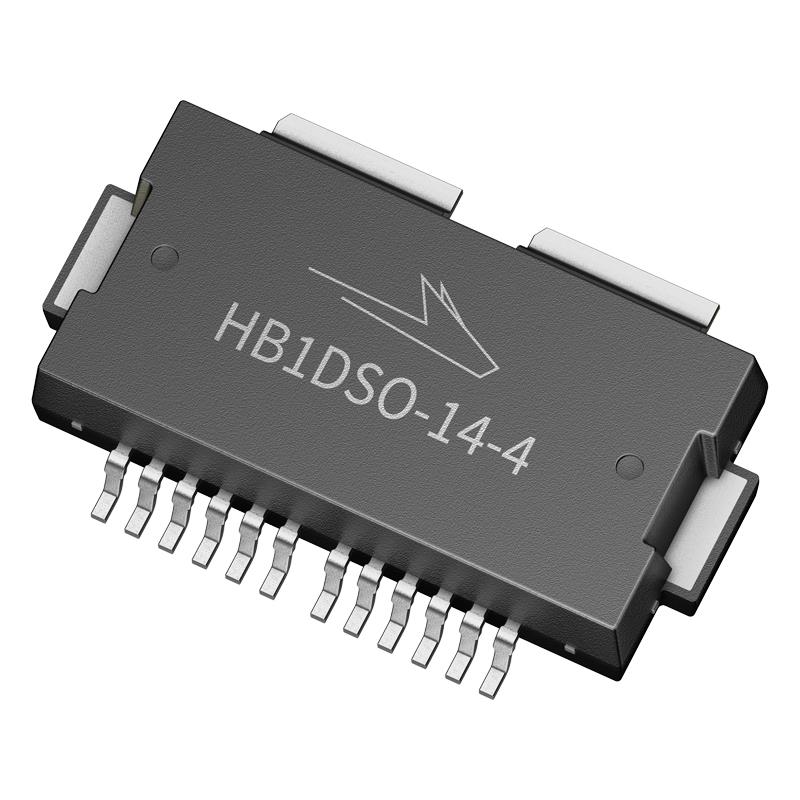

PTNC210604MD-V2-R5
RF MOSFET LDMOS 28V 14HB1DSOManufacturer: MACOM Technology Solutions
Categories: RF FETs, MOSFETs
Quality Control: Learn More
MACOM Technology Solutions PTNC210604MD-V2-R5 is a high-performance RF LDMOS transistor designed for demanding wireless infrastructure applications. This surface-mount device operates within the 1.805 GHz to 2.2 GHz frequency range, delivering 60W of output power with a typical gain of 27dB at a test voltage of 28V. The transistor features a 14-HB1DSO package (PG-HB1DSO-14-1) and is supplied on tape and reel for automated assembly. Its robust LDMOS technology ensures reliable operation in base station and power amplifier designs.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: 32 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 14-PowerSMD Module |
| Current Rating (Amps) | 1µA |
| Mounting Type | Surface Mount |
| Frequency | 1.805GHz ~ 2.2GHz |
| Configuration | - |
| Power - Output | 60W |
| Gain | 27dB |
| Technology | LDMOS (Dual) |
| Noise Figure | - |
| Supplier Device Package | PG-HB1DSO-14-1 |
| Voltage - Rated | 65 V |
| Voltage - Test | 28 V |
| Current - Test | 150 mA |
