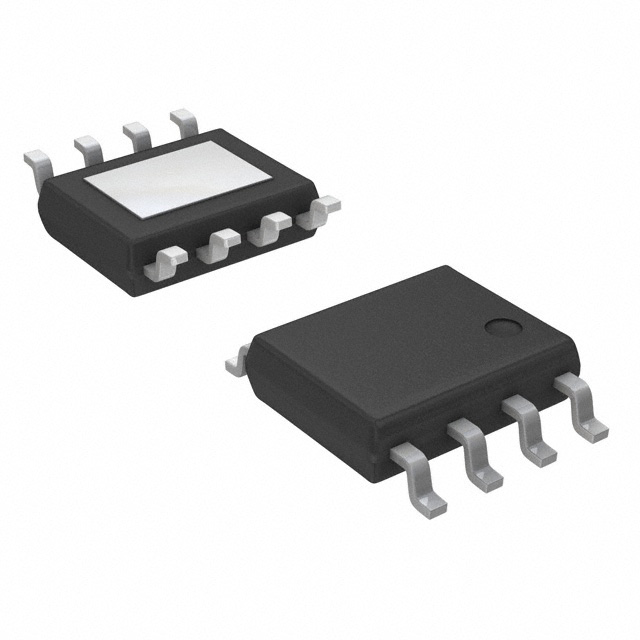

NPT35015D
RF MOSFET HEMT 28V 8SOICManufacturer: MACOM Technology Solutions
Categories: RF FETs, MOSFETs
Quality Control: Learn More
MACOM Technology Solutions NPT35015D is a high-performance RF MOSFET HEMT designed for demanding RF applications. This 28V component operates within the 3.3GHz to 3.8GHz frequency range, delivering a gain of 10.5dB and an output power of 1.7W. It features a 200mA test current and a 5A current rating, housed in an 8-SOIC-EP (Exposed Pad) package for efficient thermal management. The surface mount design facilitates integration into compact board layouts. This device is suitable for use in advanced wireless communication systems, radar, and electronic warfare applications.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 8-SOIC (0.154"", 3.90mm Width) Exposed Pad |
| Current Rating (Amps) | 5A |
| Mounting Type | Surface Mount |
| Frequency | 3.3GHz ~ 3.8GHz |
| Power - Output | 1.7W |
| Gain | 10.5dB |
| Technology | HEMT |
| Noise Figure | - |
| Supplier Device Package | 8-SOIC-EP |
| Voltage - Rated | 100 V |
| Voltage - Test | 28 V |
| Current - Test | 200 mA |
