NPT25015D
RF MOSFET HEMT 28V 8SOICManufacturer: MACOM Technology Solutions
Categories: RF FETs, MOSFETs
Quality Control: Learn More

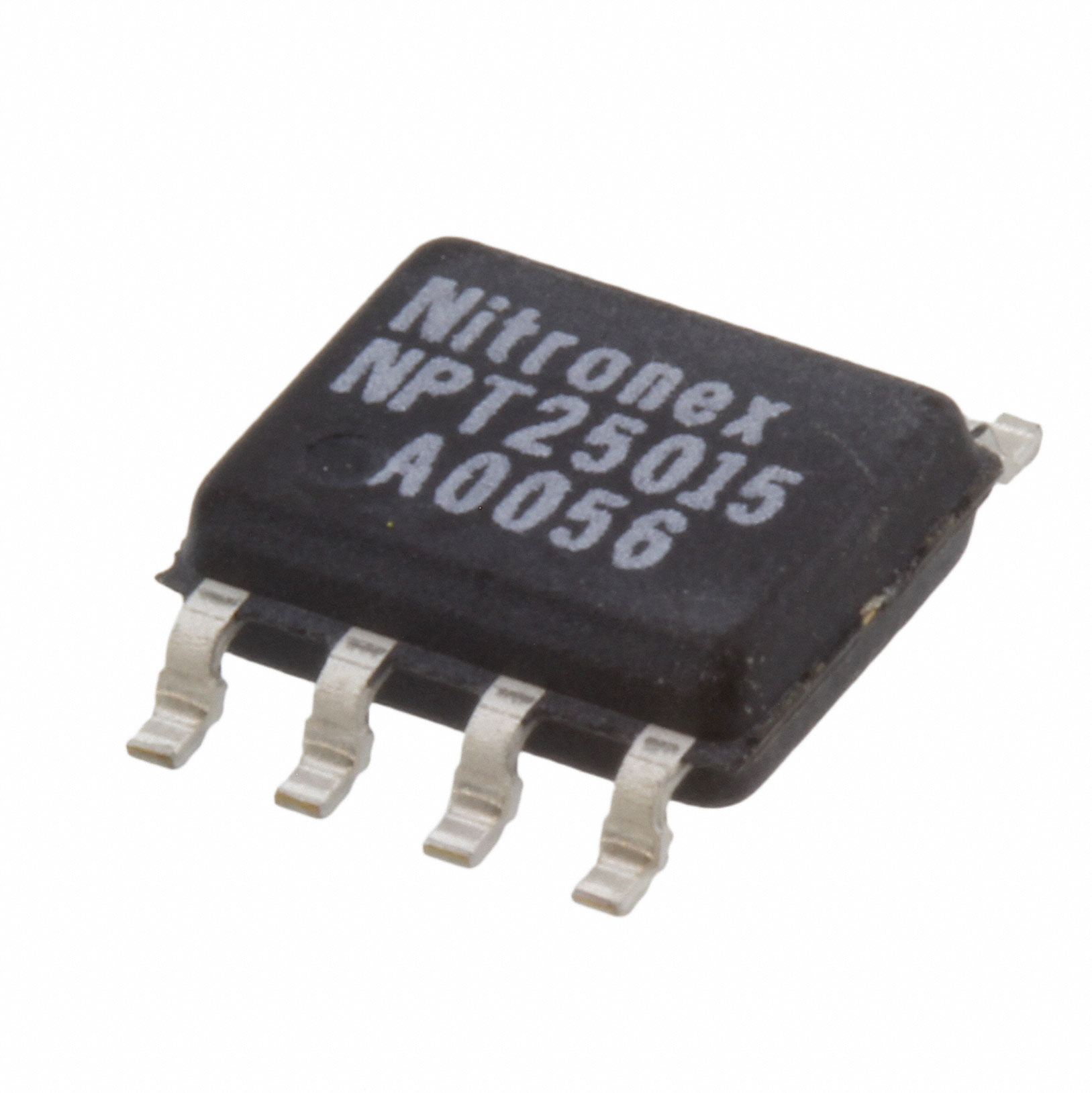

The MACOM Technology Solutions NPT25015D is a high-performance RF MOSFET designed for demanding applications. Operating across a frequency range of 0Hz to 3GHz, this HEMT device offers a typical gain of 14dB and delivers 1.5W of output power. It features a 28V test voltage and a rated voltage of 100V, with a test current of 200mA and a current rating of 5A. The NPT25015D is supplied in an 8-SOIC package with an exposed pad, facilitating effective thermal management. This component is well-suited for use in telecommunications infrastructure, aerospace and defense systems, and industrial RF equipment.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 8-SOIC (0.154"", 3.90mm Width) Exposed Pad |
| Current Rating (Amps) | 5A |
| Frequency | 0Hz ~ 3GHz |
| Power - Output | 1.5W |
| Gain | 14dB |
| Technology | HEMT |
| Noise Figure | - |
| Supplier Device Package | 8-SOIC |
| Voltage - Rated | 100 V |
| Voltage - Test | 28 V |
| Current - Test | 200 mA |
