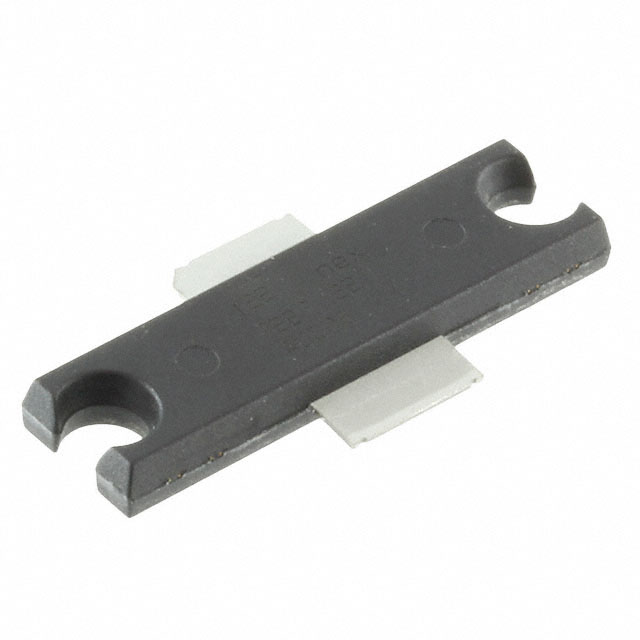

NPT2022
RF MOSFET HEMT 48V TO272-2Manufacturer: MACOM Technology Solutions
Categories: RF FETs, MOSFETs
Quality Control: Learn More
MACOM Technology Solutions NPT2022 is a 48V RF MOSFET HEMT device packaged in a TO-272-2 (TO-272BC) package. This component is engineered for high-power RF applications, operating across a frequency range of 0Hz to 2GHz. It delivers a typical gain of 17dB and a substantial output power of 100W. The device features a rated voltage of 160V, with a test voltage of 48V. The NPT2022 exhibits a current rating of 14A, with a test current of 600mA. This component is suitable for demanding applications in sectors such as aerospace, defense, and telecommunications infrastructure where robust RF performance is critical. It is supplied in tube packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 28 week(s)Product Status: ActivePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-272BC |
| Current Rating (Amps) | 14A |
| Frequency | 0Hz ~ 2GHz |
| Power - Output | 100W |
| Gain | 17dB |
| Technology | HEMT |
| Noise Figure | - |
| Supplier Device Package | TO-272-2 |
| Voltage - Rated | 160 V |
| Voltage - Test | 48 V |
| Current - Test | 600 mA |
