NPT2021
RF MOSFET HEMT 48V TO272-2Manufacturer: MACOM Technology Solutions
Categories: RF FETs, MOSFETs
Quality Control: Learn More

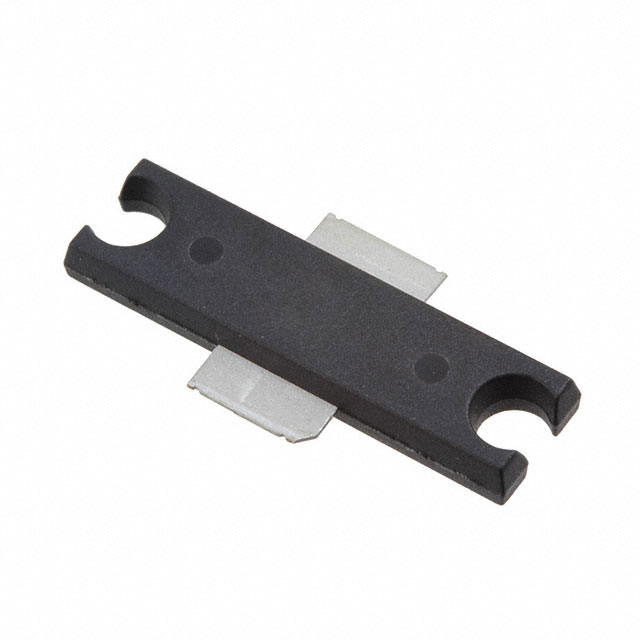

MACOM Technology Solutions NPT2021 is a high-performance RF MOSFET designed for demanding applications. This HEMT device operates across a frequency range of 0Hz to 2.2GHz, delivering a typical gain of 15dB. Featuring a 48V test voltage and a 160V rated voltage, the NPT2021 is capable of handling significant power, with an output power of 50W. Its robust TO-272-2 package ensures reliable thermal performance. This component is commonly utilized in aerospace and defense, telecommunications infrastructure, and industrial RF systems where efficient power amplification and high-frequency operation are critical. The NPT2021 is supplied in tube packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 28 week(s)Product Status: ActivePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-272BC |
| Current Rating (Amps) | 7A |
| Frequency | 0Hz ~ 2.2GHz |
| Power - Output | 50W |
| Gain | 15dB |
| Technology | HEMT |
| Noise Figure | - |
| Supplier Device Package | TO-272-2 |
| Voltage - Rated | 160 V |
| Voltage - Test | 48 V |
| Current - Test | 300 mA |
