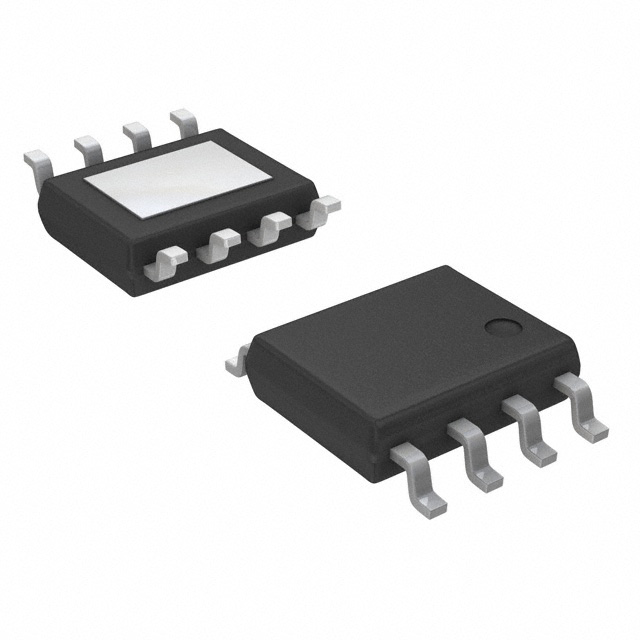

NPT1004D
RF MOSFET HEMT 28V 8SOICManufacturer: MACOM Technology Solutions
Categories: RF FETs, MOSFETs
Quality Control: Learn More
MACOM Technology Solutions NPT1004D is a high-performance RF MOSFET with High Electron Mobility Transistor (HEMT) technology. This component operates across a frequency range of 0Hz to 4GHz, delivering a gain of 13dB and an output power of 37dBm. It is rated for 100V with a test voltage of 28V and can handle a current rating of 9.5A, with a test current of 350mA. The NPT1004D is available in an 8-SOIC-EP (Exposed Pad) package, suitable for surface mount applications. This device is commonly utilized in wireless infrastructure, satellite communications, and defense electronics.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 8-SOIC (0.154"", 3.90mm Width) Exposed Pad |
| Current Rating (Amps) | 9.5A |
| Mounting Type | Surface Mount |
| Frequency | 0Hz ~ 4GHz |
| Power - Output | 37dBm |
| Gain | 13dB |
| Technology | HEMT |
| Noise Figure | - |
| Supplier Device Package | 8-SOIC-EP |
| Voltage - Rated | 100 V |
| Voltage - Test | 28 V |
| Current - Test | 350 mA |
