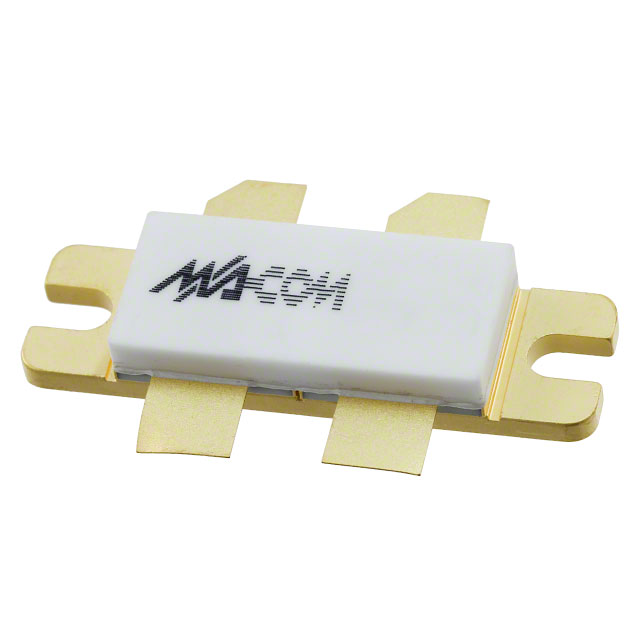

MRF275G
RF MOSFET 28V 375-04Manufacturer: MACOM Technology Solutions
Categories: RF FETs, MOSFETs
Quality Control: Learn More
MACOM Technology Solutions MRF275G is a high-power RF MOSFET designed for demanding applications. This 2 N-Channel, common source device operates at 500MHz, delivering a robust 150W of output power with a typical gain of 11.2dB. The MRF275G is rated for 65V with a test voltage of 28V and can handle a current rating of 26A, featuring a test current of 100mA. Packaged in the 375-04, Style 2 configuration, this MOSFET is suitable for use in base station infrastructure and power amplifier designs. Its Metal Oxide semiconductor technology ensures efficient performance in high-frequency power conversion and amplification circuits.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 375-04 |
| Current Rating (Amps) | 26A |
| Frequency | 500MHz |
| Configuration | 2 N-Channel (Dual) Common Source |
| Power - Output | 150W |
| Gain | 11.2dB |
| Technology | MOSFET (Metal Oxide) |
| Noise Figure | - |
| Supplier Device Package | 375-04, Style 2 |
| Voltage - Rated | 65 V |
| Voltage - Test | 28 V |
| Current - Test | 100 mA |
