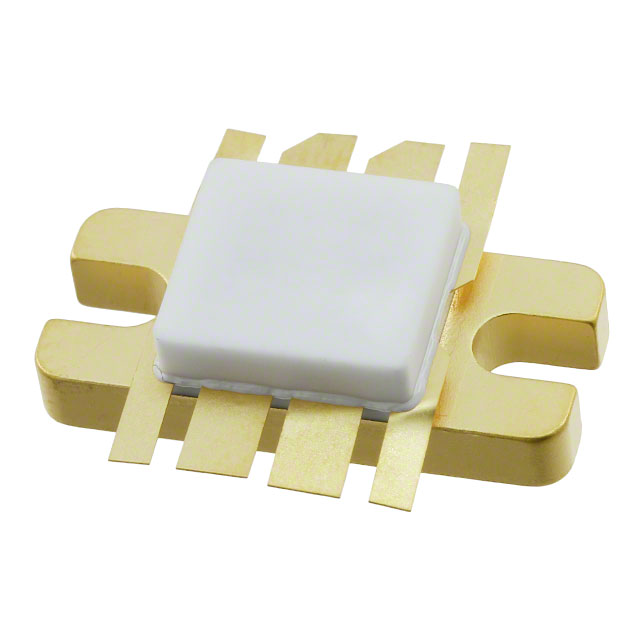

MRF177
RF MOSFET 28V 744A-01Manufacturer: MACOM Technology Solutions
Categories: RF FETs, MOSFETs
Quality Control: Learn More
MACOM Technology Solutions MRF177 is a high-power RF MOSFET designed for demanding applications. This dual N-Channel, common source device operates at 400MHz, delivering 100W of output power with a 12dB gain. It features a 28V test voltage and a 200mA test current. The MRF177 is housed in a 744A-01 (Style 2) package, suitable for high-frequency power amplification in industrial, defense, and commercial wireless infrastructure. This MOSFET technology ensures robust performance and reliability for advanced RF systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 34 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 744A-01 |
| Current Rating (Amps) | 16A |
| Frequency | 400MHz |
| Configuration | 2 N-Channel (Dual) Common Source |
| Power - Output | 100W |
| Gain | 12dB |
| Technology | MOSFET (Metal Oxide) |
| Noise Figure | - |
| Supplier Device Package | 744A-01, Style 2 |
| Voltage - Rated | 65 V |
| Voltage - Test | 28 V |
| Current - Test | 200 mA |
