MRF175GV
RF MOSFET 28V 375-04Manufacturer: MACOM Technology Solutions
Categories: RF FETs, MOSFETs
Quality Control: Learn More

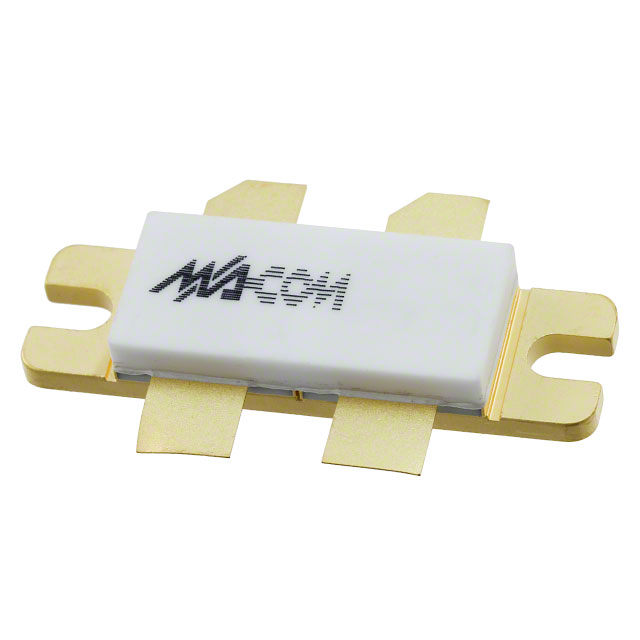

MACOM Technology Solutions MRF175GV is a high-power RF MOSFET designed for demanding applications. This dual N-Channel, common source device operates at 225MHz and delivers 200W of output power with a 14dB gain. Its robust construction is evident in its 65V rated voltage and 26A current handling capability. Tested at 28V and 100mA, the MRF175GV is suited for power amplification in base stations, industrial heating, and broadcast transmitters. Packaged in a 375-04 case, style 2, this component offers reliable performance for advanced RF designs.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 375-04 |
| Current Rating (Amps) | 26A |
| Frequency | 225MHz |
| Configuration | 2 N-Channel (Dual) Common Source |
| Power - Output | 200W |
| Gain | 14dB |
| Technology | MOSFET (Metal Oxide) |
| Noise Figure | - |
| Supplier Device Package | 375-04, Style 2 |
| Voltage - Rated | 65 V |
| Voltage - Test | 28 V |
| Current - Test | 100 mA |
