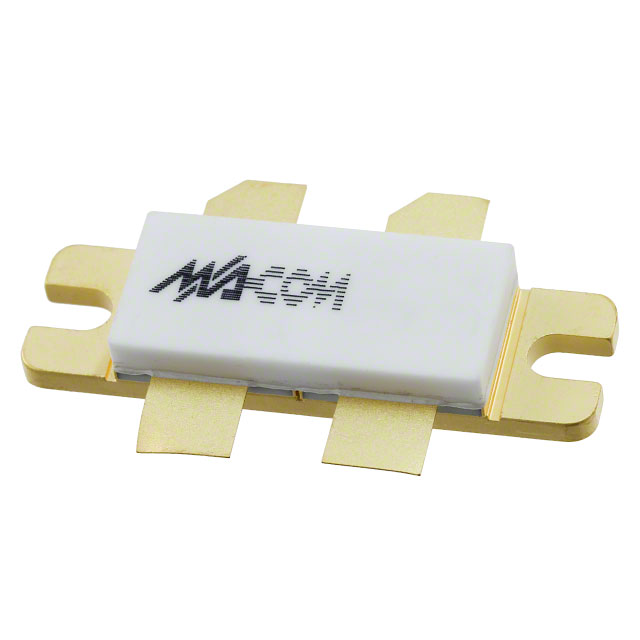

MRF175GU
RF MOSFET 28V 375-04Manufacturer: MACOM Technology Solutions
Categories: RF FETs, MOSFETs
Quality Control: Learn More
MACOM Technology Solutions MRF175GU is a high-power RF MOSFET designed for demanding applications. This 2 N-Channel, Dual Common Source device operates at 225MHz, delivering 200W of output power with a typical gain of 14dB. It is rated for a 65V drain-source voltage with a test voltage of 28V and can handle a continuous drain current of 26A. The MRF175GU utilizes MOSFET technology and is supplied in a 375-04 package, Style 2, presented in tray packaging. This component is suitable for use in base station infrastructure and high-power RF amplification systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 375-04 |
| Current Rating (Amps) | 26A |
| Frequency | 225MHz |
| Configuration | 2 N-Channel (Dual) Common Source |
| Power - Output | 200W |
| Gain | 14dB |
| Technology | MOSFET (Metal Oxide) |
| Noise Figure | - |
| Supplier Device Package | 375-04, Style 2 |
| Voltage - Rated | 65 V |
| Voltage - Test | 28 V |
| Current - Test | 100 mA |
