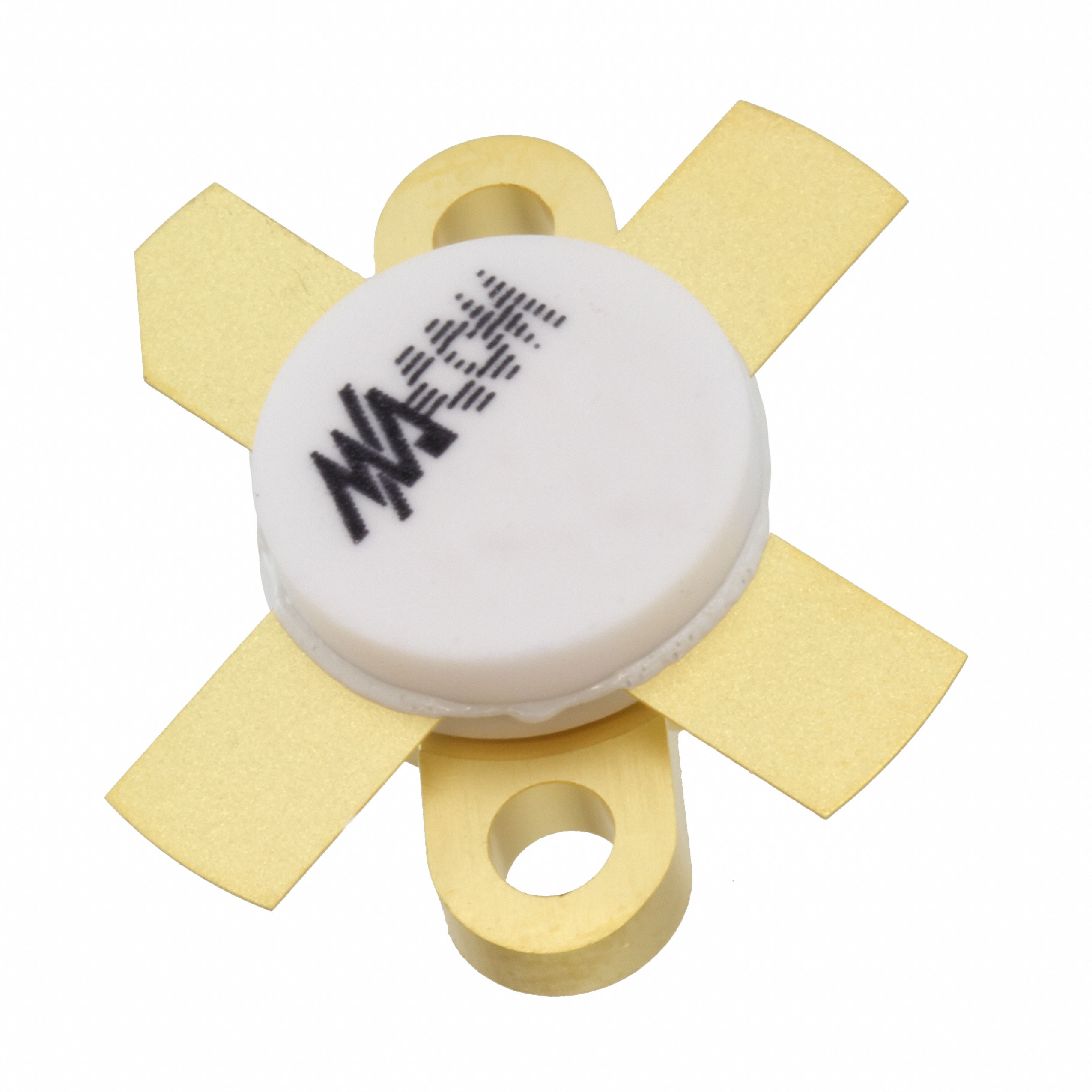

MRF173
RF MOSFET 28V 211-11Manufacturer: MACOM Technology Solutions
Categories: RF FETs, MOSFETs
Quality Control: Learn More
MACOM Technology Solutions MRF173 is an N-Channel RF Power MOSFET designed for high-power applications. This component operates at 150MHz, delivering 80W of output power with a typical gain of 13dB. The MRF173 features a 28V test voltage and a rated voltage of 65V, with a continuous drain current rating of 9A. Its noise figure is 1.5dB, suitable for demanding RF power amplifier designs. The device is housed in a 211-11, Style 2 package, supplied in trays. This RF power MOSFET finds application in industrial, medical, and defense communication systems requiring robust power amplification.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 34 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 211-11, Style 2 |
| Current Rating (Amps) | 9A |
| Frequency | 150MHz |
| Configuration | N-Channel |
| Power - Output | 80W |
| Gain | 13dB |
| Technology | MOSFET (Metal Oxide) |
| Noise Figure | 1.5dB |
| Supplier Device Package | 211-11, Style 2 |
| Voltage - Rated | 65 V |
| Voltage - Test | 28 V |
| Current - Test | 50 mA |
