MRF166W
RF MOSFET 28V 412-01Manufacturer: MACOM Technology Solutions
Categories: RF FETs, MOSFETs
Quality Control: Learn More

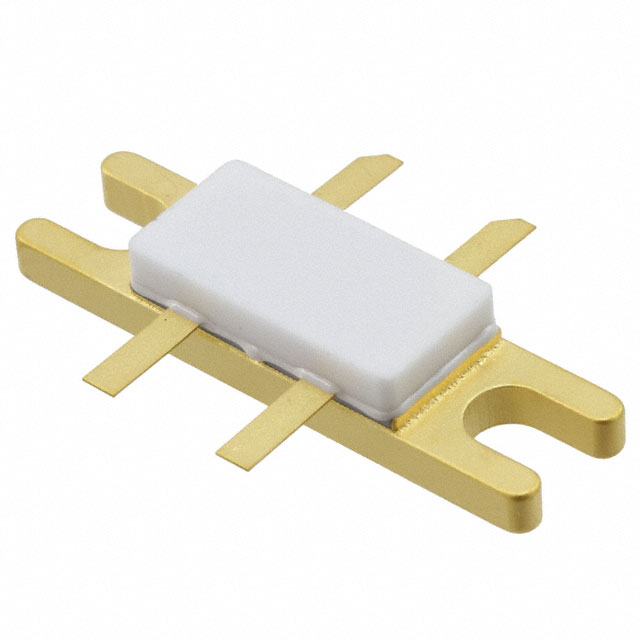

MACOM Technology Solutions MRF166W is a high-power RF MOSFET designed for demanding applications. This dual N-Channel, common source device operates across a frequency range of 30MHz to 500MHz, delivering 40W of output power with a typical gain of 16dB. Rated at 65V with a test voltage of 28V and a current rating of 8A, it is engineered for robust performance in RF power amplification. The MRF166W is housed in a 412-01 package, style 1. Its specifications make it suitable for use in industrial, military, and aerospace communication systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 412-01 |
| Current Rating (Amps) | 8A |
| Frequency | 30MHz ~ 500MHz |
| Configuration | 2 N-Channel (Dual) Common Source |
| Power - Output | 40W |
| Gain | 16dB |
| Technology | MOSFET (Metal Oxide) |
| Noise Figure | - |
| Supplier Device Package | 412-01, Style 1 |
| Voltage - Rated | 65 V |
| Voltage - Test | 28 V |
| Current - Test | 100 mA |
