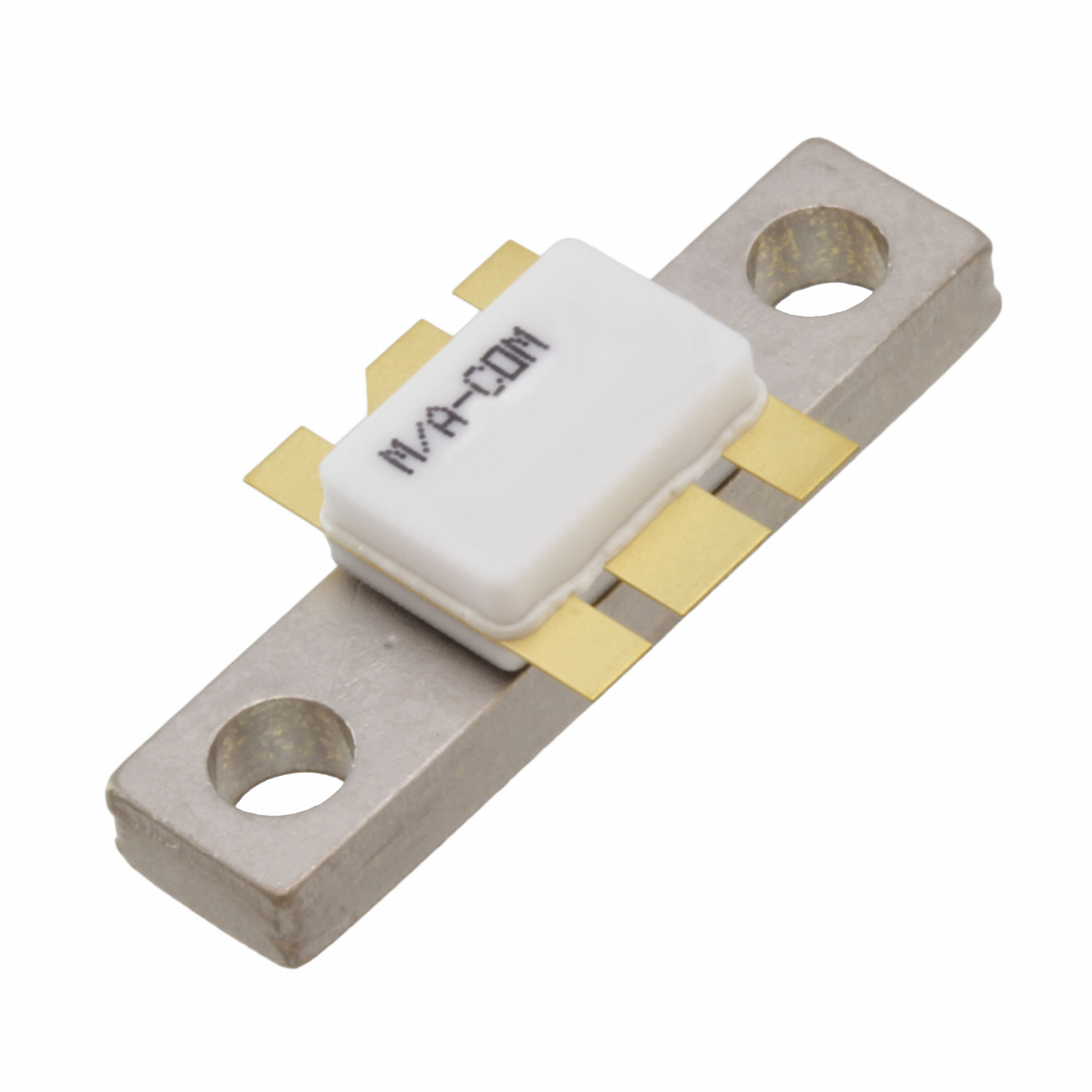

MRF166C
RF MOSFET 28V 319-07Manufacturer: MACOM Technology Solutions
Categories: RF FETs, MOSFETs
Quality Control: Learn More
MACOM Technology Solutions MRF166C is an N-channel RF power MOSFET designed for high-frequency applications. This component operates within a frequency range of 30MHz to 500MHz, delivering a power output of 20W with a typical gain of 16dB. Tested at 28V and 25mA, the MRF166C features a rated voltage of 65V and a current rating of 4A. It is packaged in a 319-07 (Style 3) configuration, suitable for demanding RF power amplification stages. Applications for this device include broadcast transmitters, industrial heating, and general-purpose RF power systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 319-07 |
| Current Rating (Amps) | 4A |
| Frequency | 30MHz ~ 500MHz |
| Configuration | N-Channel |
| Power - Output | 20W |
| Gain | 16dB |
| Technology | MOSFET (Metal Oxide) |
| Noise Figure | - |
| Supplier Device Package | 319-07, Style 3 |
| Voltage - Rated | 65 V |
| Voltage - Test | 28 V |
| Current - Test | 25 mA |
