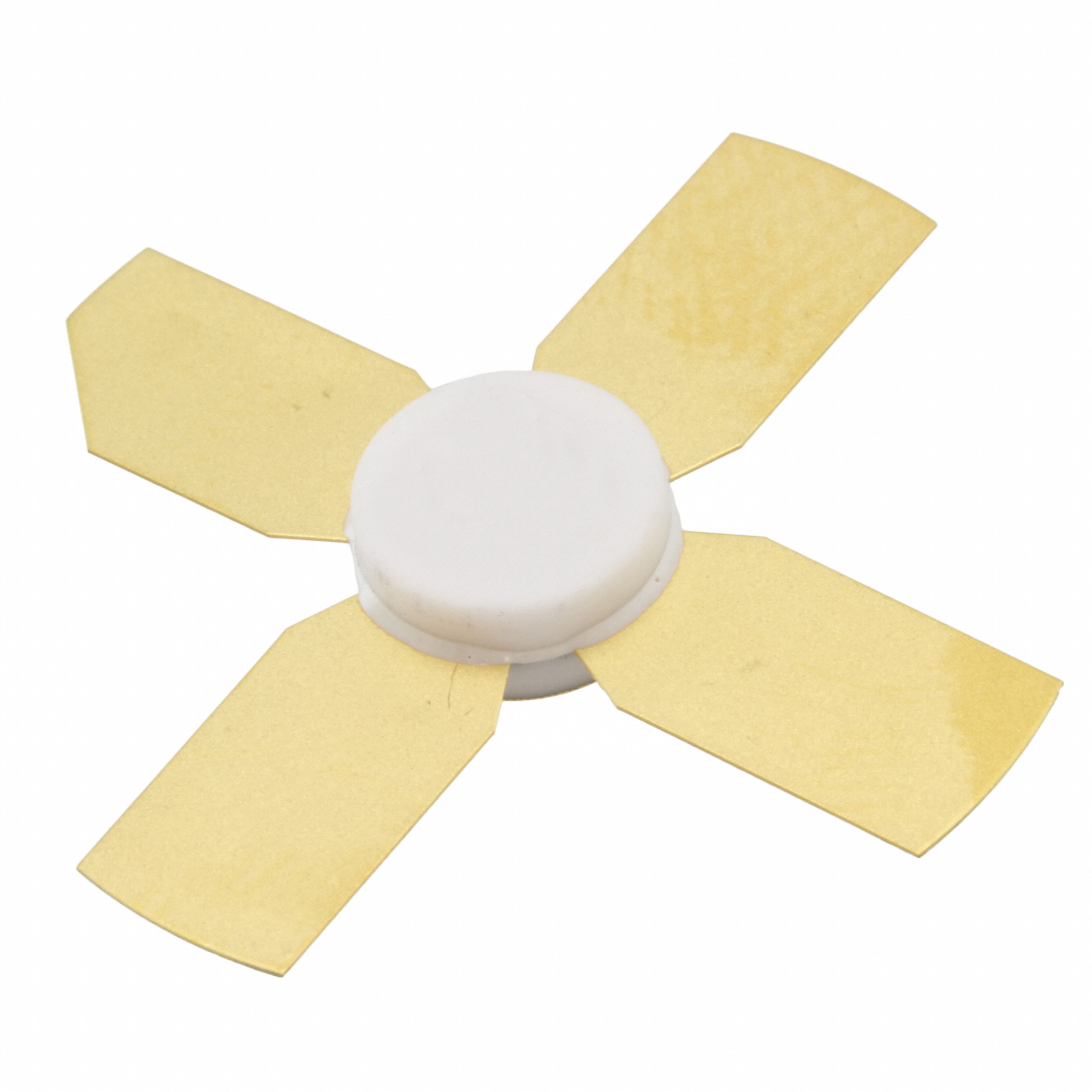

MRF160
RF MOSFET 28V 249-06Manufacturer: MACOM Technology Solutions
Categories: RF FETs, MOSFETs
Quality Control: Learn More
MACOM Technology Solutions MRF160 is a high-performance N-Channel RF MOSFET designed for demanding applications. This component operates within a frequency range of 30MHz to 500MHz, delivering a substantial 4W of output power. It exhibits a typical gain of 18dB and is characterized at 28V with a test current of 50 mA. The MRF160 is housed in a 249-06 package, Style 3, and is suitable for high-frequency power amplification stages. This device finds application in industrial, defense, and communications systems requiring robust RF performance. The rated voltage for this MOSFET is 65V.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 249-06 |
| Current Rating (Amps) | 1A |
| Frequency | 30MHz ~ 500MHz |
| Configuration | N-Channel |
| Power - Output | 4W |
| Gain | 18dB |
| Technology | MOSFET (Metal Oxide) |
| Noise Figure | - |
| Supplier Device Package | 249-06, Style 3 |
| Voltage - Rated | 65 V |
| Voltage - Test | 28 V |
| Current - Test | 50 mA |
