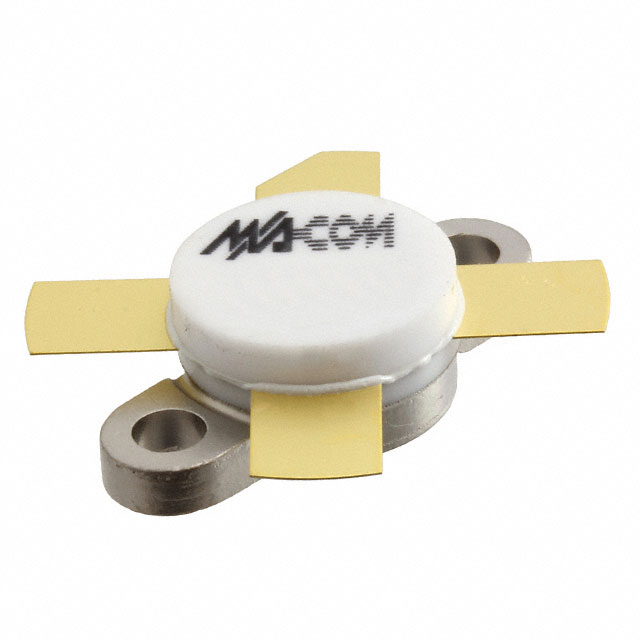

MRF151A
RF MOSFET 50V P-244Manufacturer: MACOM Technology Solutions
Categories: RF FETs, MOSFETs
Quality Control: Learn More
MACOM Technology Solutions MRF151A is a high-power RF MOSFET designed for demanding applications. This N-Channel device, packaged in a P-244, operates within a frequency range of 30MHz to 175MHz, offering a gain between 13dB and 22dB. With a rated voltage of 125V and a test voltage of 50V, it achieves an output power of 150W. The MRF151A is suitable for power amplification in various RF systems, including industrial, medical, and aerospace applications. Its robust construction and specified performance parameters make it a reliable choice for high-frequency power management.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 34 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | P-244 |
| Current Rating (Amps) | 16A |
| Frequency | 30MHz ~ 175MHz |
| Configuration | N-Channel |
| Power - Output | 150W |
| Gain | 13dB ~ 22dB |
| Technology | MOSFET (Metal Oxide) |
| Noise Figure | - |
| Supplier Device Package | P-244 |
| Voltage - Rated | 125 V |
| Voltage - Test | 50 V |
| Current - Test | 250 mA |
