MRF148A
RF MOSFET 50V 211-07Manufacturer: MACOM Technology Solutions
Categories: RF FETs, MOSFETs
Quality Control: Learn More

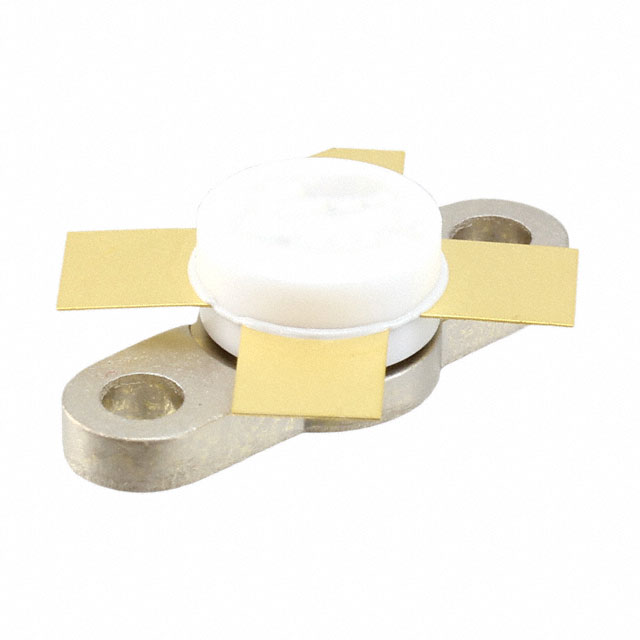

The MACOM Technology Solutions MRF148A is a high-power RF MOSFET designed for demanding applications. This N-Channel device operates across a frequency range of 30MHz to 175MHz, delivering a typical output power of 30W. With a test current of 100mA, it exhibits a gain of 15dB to 18dB. The MRF148A is housed in a 211-07 package, style 2, and is supplied in trays. This component is suitable for use in various RF power amplification stages within the industrial, medical, and defense sectors. The device features a rated voltage of 120V and a test voltage of 50V, with a tested current of 100mA and a current rating of 6A.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 34 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 211-07 |
| Current Rating (Amps) | 6A |
| Frequency | 30MHz ~ 175MHz |
| Configuration | N-Channel |
| Power - Output | 30W |
| Gain | 15dB ~ 18dB |
| Technology | MOSFET (Metal Oxide) |
| Noise Figure | - |
| Supplier Device Package | 211-07, Style 2 |
| Voltage - Rated | 120 V |
| Voltage - Test | 50 V |
| Current - Test | 100 mA |
