MAGX-003135-120L00
RF MOSFET HEMT 50VManufacturer: MACOM Technology Solutions
Categories: RF FETs, MOSFETs
Quality Control: Learn More

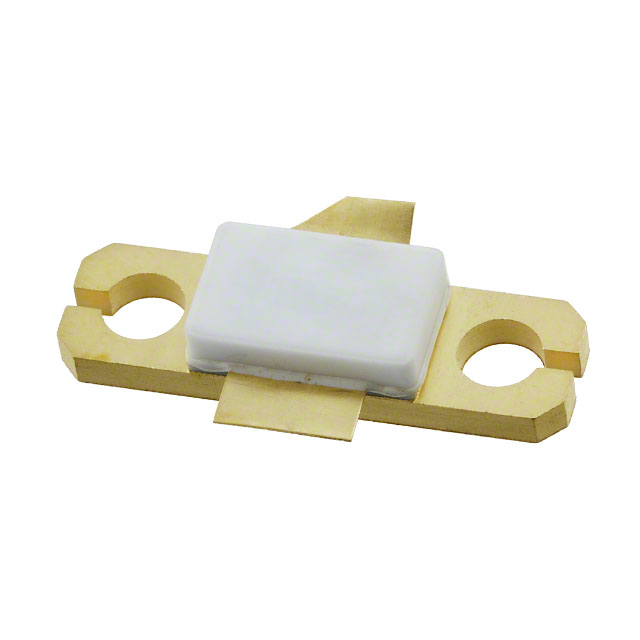

MACOM Technology Solutions MAGX-003135-120L00 is a high-power RF MOSFET designed for demanding applications. This HEMT transistor operates within the 3.1GHz to 3.5GHz frequency range, delivering a substantial 120W of output power. It exhibits a typical gain of 11.2dB at a test current of 300mA and a test voltage of 50V. The device is rated for a voltage of 65V and is supplied in bulk packaging. This component is suitable for use in base station infrastructure and other high-frequency power amplification systems.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | - |
| Current Rating (Amps) | 9mA |
| Frequency | 3.1GHz ~ 3.5GHz |
| Power - Output | 120W |
| Gain | 11.2dB |
| Technology | HEMT |
| Noise Figure | - |
| Supplier Device Package | - |
| Voltage - Rated | 65 V |
| Voltage - Test | 50 V |
| Current - Test | 300 mA |
