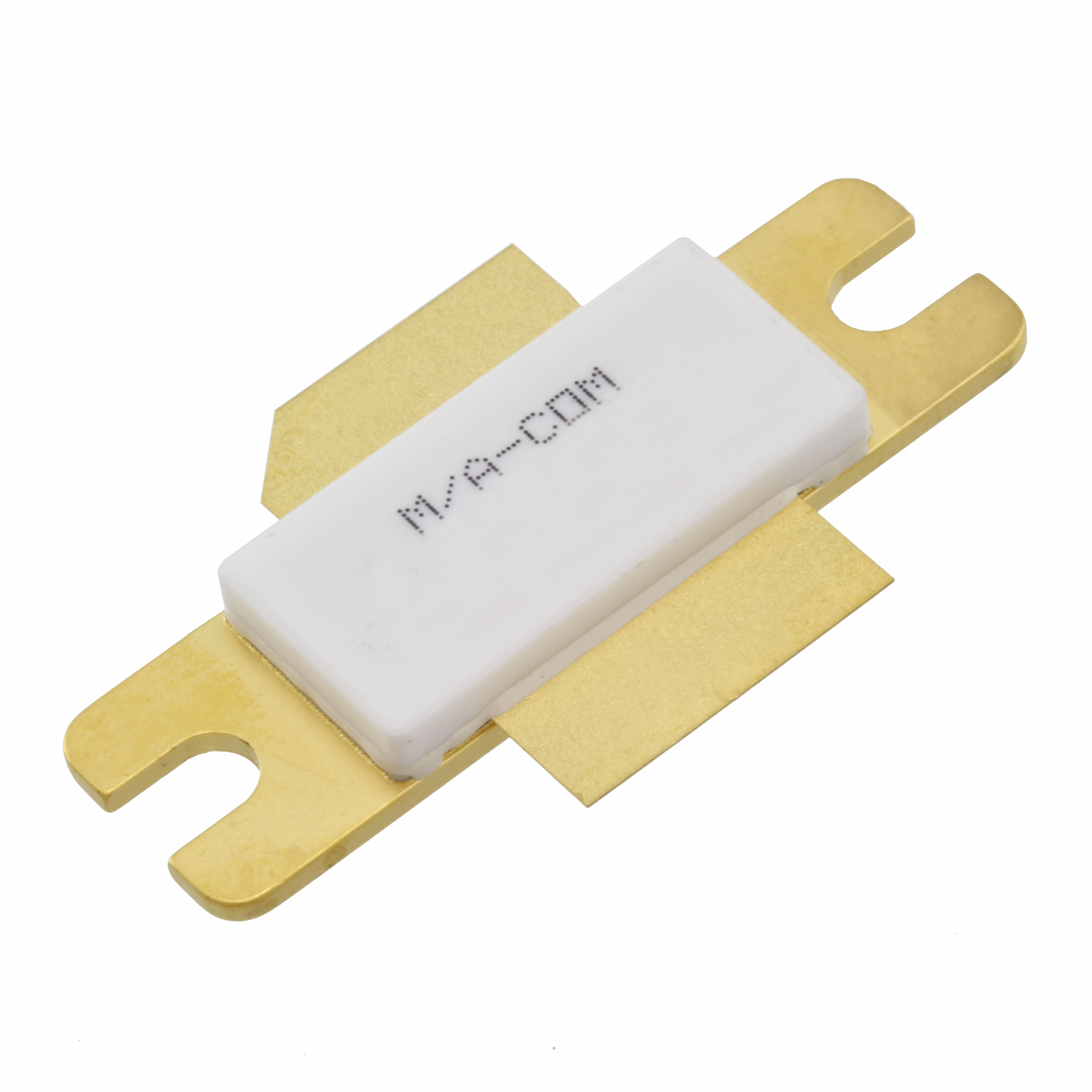

MAGX-001214-500L00
RF MOSFET HEMT 50VManufacturer: MACOM Technology Solutions
Categories: RF FETs, MOSFETs
Quality Control: Learn More
MACOM Technology Solutions MAGX-001214-500L00 is a High Electron Mobility Transistor (HEMT) RF power device. Engineered for demanding RF applications, this component operates across the 1.2 GHz to 1.4 GHz frequency band. It delivers a nominal output power of 500W with a power gain of 19.22dB at a test voltage of 50V. The device is rated for a voltage up to 65V and is supplied in Bulk packaging. This MACOM Technology Solutions device is suitable for use in base station infrastructure and radar systems.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | - |
| Current Rating (Amps) | 18.1A |
| Frequency | 1.2GHz ~ 1.4GHz |
| Power - Output | 500W |
| Gain | 19.22dB |
| Technology | HEMT |
| Noise Figure | - |
| Supplier Device Package | - |
| Voltage - Rated | 65 V |
| Voltage - Test | 50 V |
| Current - Test | 400 mA |
