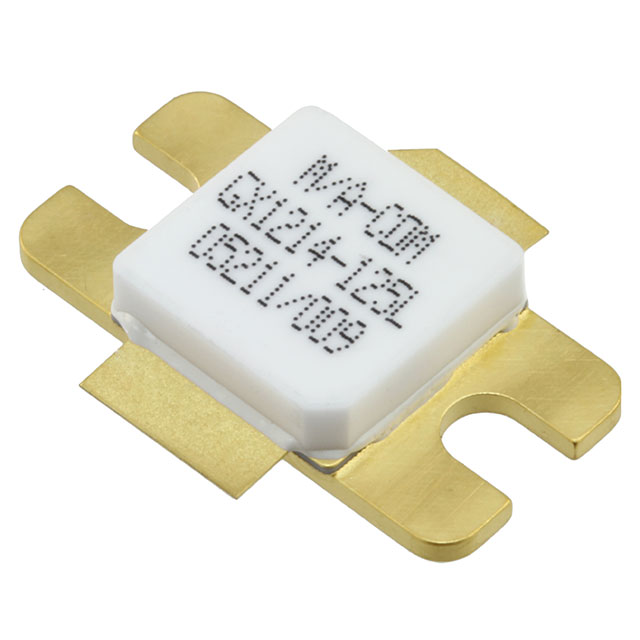

MAGX-001214-125L00
RF MOSFET HEMT 50VManufacturer: MACOM Technology Solutions
Categories: RF FETs, MOSFETs
Quality Control: Learn More
MACOM Technology Solutions MAGX-001214-125L00 is a high-power RF MOSFET operating in the 1.2GHz to 1.4GHz frequency range. This HEMT technology device delivers 125W of output power at a 50V test voltage, with a typical gain of 18.4dB. The component is rated for a voltage of 65V and features a current rating of 4.8A, with a test current of 100mA. Applications for this RF component include radar systems, satellite communications, and other high-frequency power amplification stages. Packaging is provided in bulk.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | - |
| Current Rating (Amps) | 4.8A |
| Frequency | 1.2GHz ~ 1.4GHz |
| Power - Output | 125W |
| Gain | 18.4dB |
| Technology | HEMT |
| Noise Figure | - |
| Supplier Device Package | - |
| Voltage - Rated | 65 V |
| Voltage - Test | 50 V |
| Current - Test | 100 mA |
