MAGX-000040-00500P
RF MOSFET HEMT 50V SOT89Manufacturer: MACOM Technology Solutions
Categories: RF FETs, MOSFETs
Quality Control: Learn More

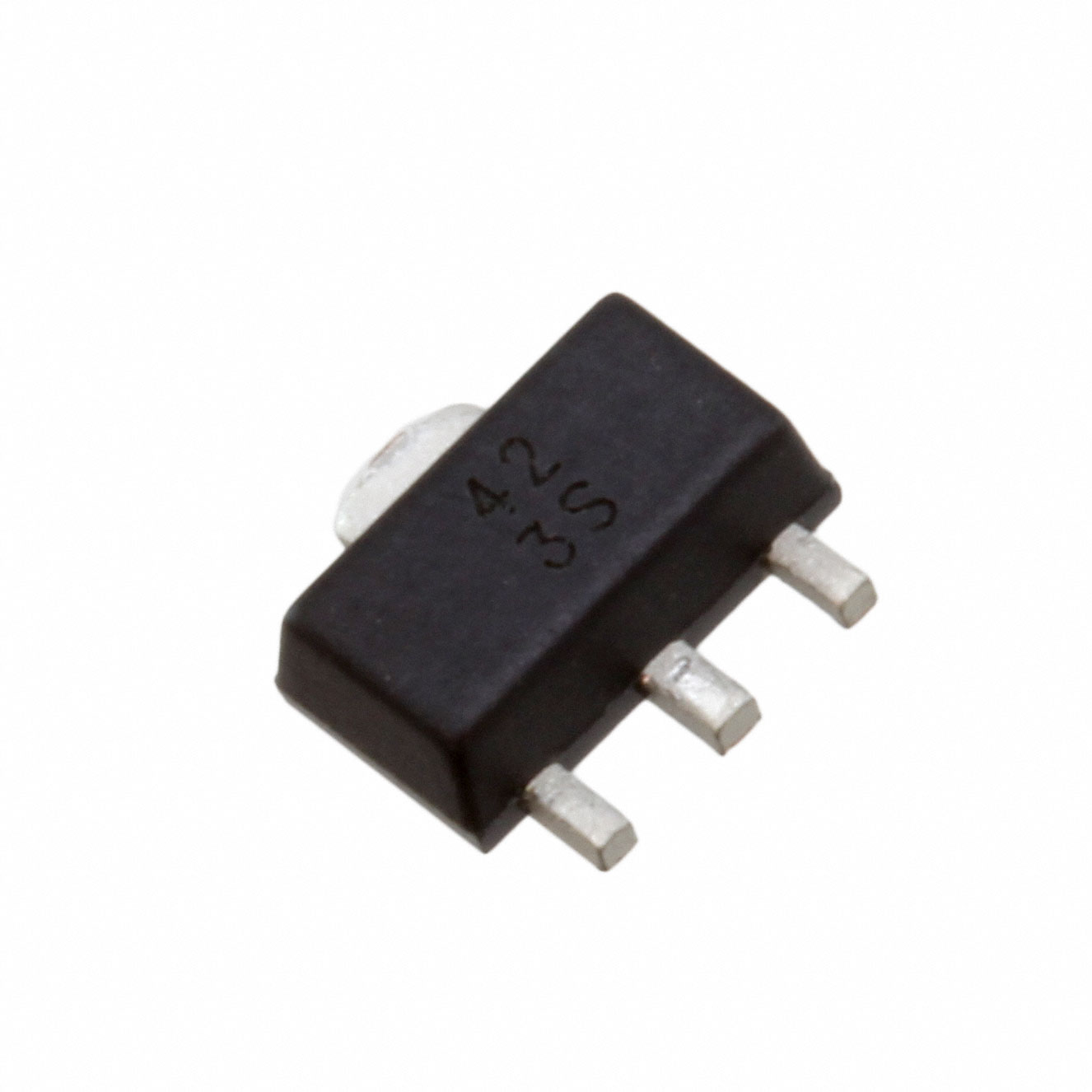

MACOM Technology Solutions' MAGX-000040-00500P is a High Electron Mobility Transistor (HEMT) designed for demanding RF applications. This SOT-89 packaged component operates at a rated voltage of 65 V, with a test voltage of 50 V. It delivers 5 W of output power and exhibits a gain of 15.6 dB at a frequency of 4 GHz. The device draws a test current of 17 mA and has a current rating of 300 mA. Its robust construction and performance characteristics make it suitable for use in wireless infrastructure and defense systems.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | TO-243AA |
| Current Rating (Amps) | 300mA |
| Frequency | 4GHz |
| Power - Output | 5W |
| Gain | 15.6dB |
| Technology | HEMT |
| Noise Figure | - |
| Supplier Device Package | SOT-89 |
| Voltage - Rated | 65 V |
| Voltage - Test | 50 V |
| Current - Test | 17 mA |
