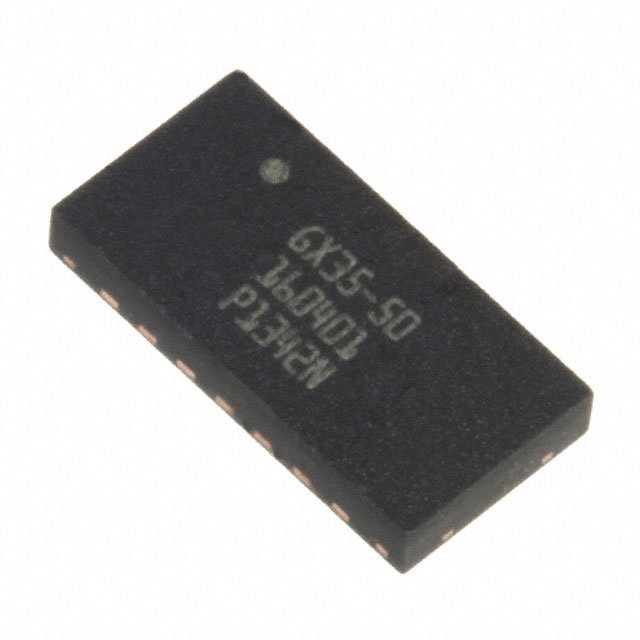

MAGX-000035-05000P
RF MOSFET HEMT 50V 14DFNManufacturer: MACOM Technology Solutions
Categories: RF FETs, MOSFETs
Quality Control: Learn More
MACOM Technology Solutions MAGX-000035-05000P is a high-performance RF MOSFET utilizing HEMT technology. This component operates across a frequency range of 0Hz to 3.5GHz, delivering 12W of output power with a typical gain of 14dB. It is rated for 65V and tested at 50V, with a continuous current rating of 2.5A and a test current of 100mA. The MAGX-000035-05000P is supplied in a 14-DFN (3x6) exposed pad package. This device is suitable for applications in the aerospace and defense, industrial, and communications sectors requiring robust RF performance.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 14-VDFN Exposed Pad |
| Current Rating (Amps) | 2.5A |
| Frequency | 0Hz ~ 3.5GHz |
| Power - Output | 12W |
| Gain | 14dB |
| Technology | HEMT |
| Noise Figure | - |
| Supplier Device Package | 14-DFN (3x6) |
| Voltage - Rated | 65 V |
| Voltage - Test | 50 V |
| Current - Test | 100 mA |
Request a Quote
