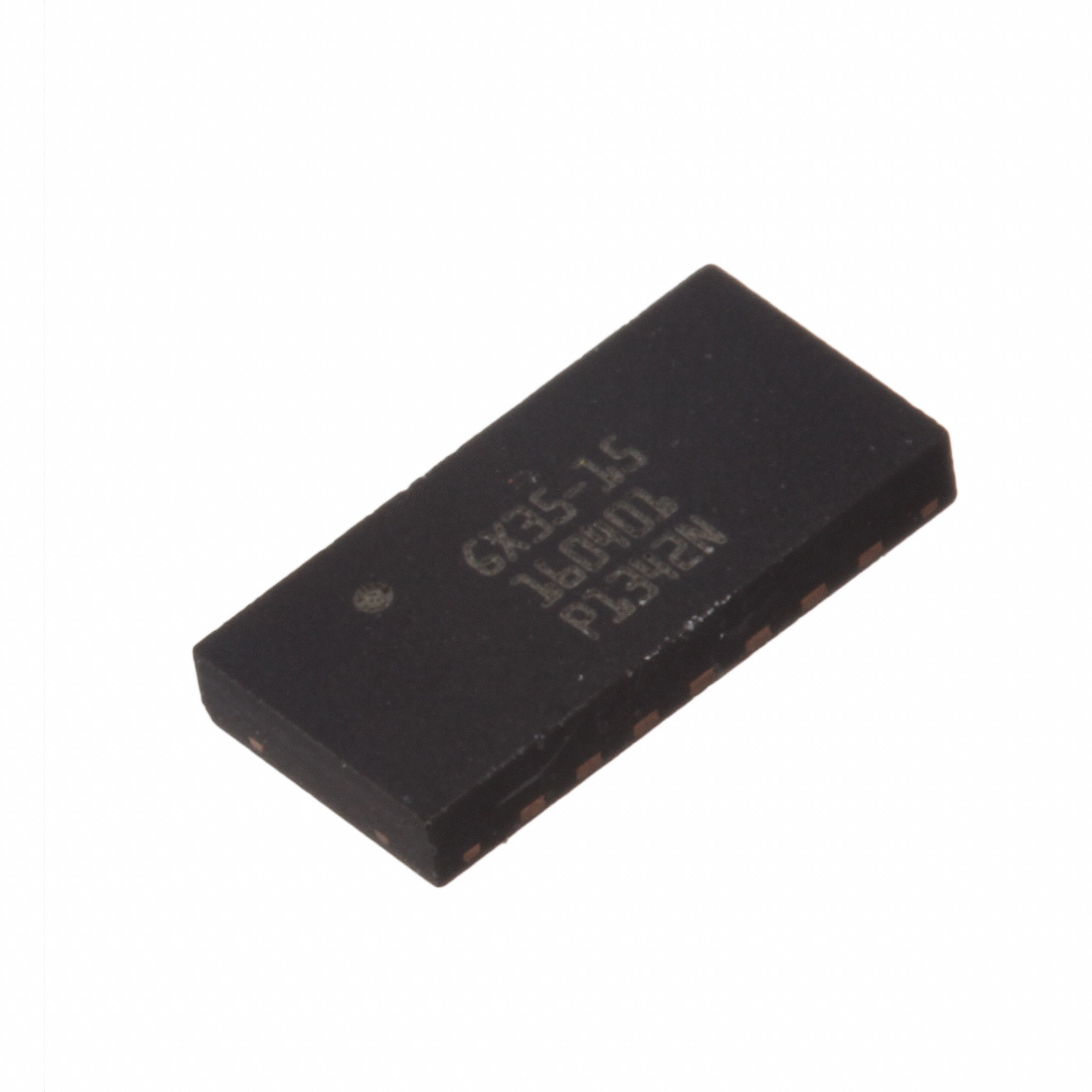

MAGX-000035-01500P
RF MOSFET HEMT 50V 14DFNManufacturer: MACOM Technology Solutions
Categories: RF FETs, MOSFETs
Quality Control: Learn More
MACOM Technology Solutions MAGX-000035-01500P is a high-performance RF MOSFET HEMT designed for demanding applications. This device operates at a rated voltage of 65V, with testing conducted at 50V. It features a test current of 35mA and delivers 14W of output power at a frequency of 3.5GHz, boasting a gain of 14dB. The component is housed in a compact 14-DFN (3x6) package with an exposed pad for efficient thermal management. Its HEMT technology ensures excellent linearity and efficiency, making it suitable for use in wireless infrastructure, radar systems, and satellite communications. The MAGX-000035-01500P is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 14-VDFN Exposed Pad |
| Current Rating (Amps) | 1mA |
| Frequency | 3.5GHz |
| Power - Output | 14W |
| Gain | 14dB |
| Technology | HEMT |
| Noise Figure | - |
| Supplier Device Package | 14-DFN (3x6) |
| Voltage - Rated | 65 V |
| Voltage - Test | 50 V |
| Current - Test | 35 mA |
