GTRA184602FC-V1-R0

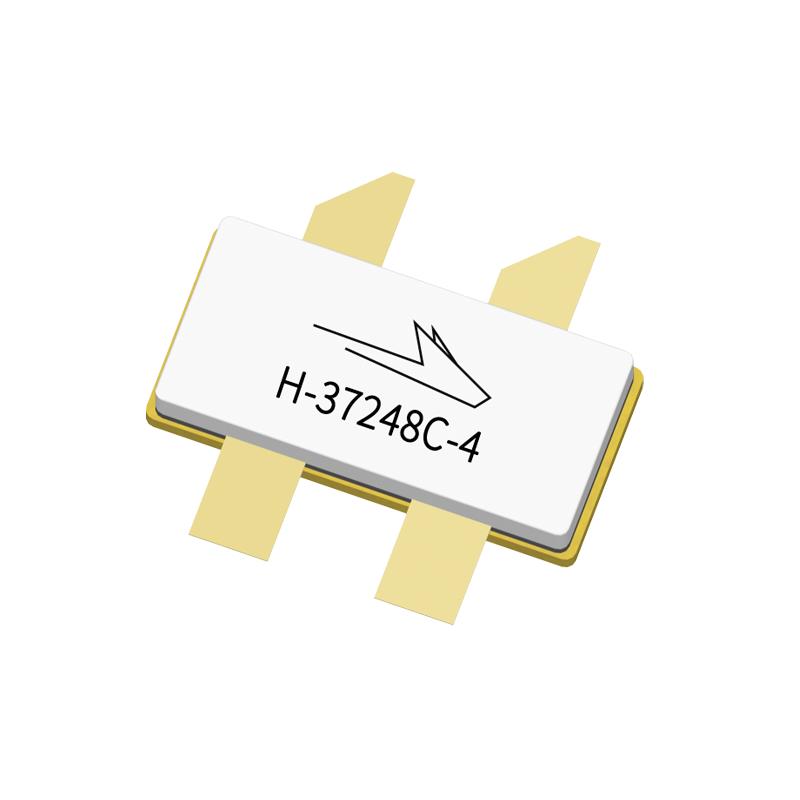

RF MOSFET HEMT 48V H-37248C-4Manufacturer: MACOM Technology Solutions
Categories: RF FETs, MOSFETs
Quality Control: Learn More
MACOM Technology Solutions GTRA184602FC-V1-R0 is a High Electron Mobility Transistor (HEMT) RF power device designed for high-power applications. Operating within the 1.805GHz to 1.88GHz frequency range, this component delivers a typical gain of 15.5dB and an output power of 460W. It is specified for a drain voltage of 48V and a drain current of 150mA during testing. The device utilizes HEMT technology for superior performance characteristics. Packaged in the H-37248C-4 surface-mount configuration on tape and reel, the GTRA184602FC-V1-R0 is suitable for use in demanding RF power amplification systems within wireless infrastructure and base station applications.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | H-37248C-4 |
| Current Rating (Amps) | - |
| Mounting Type | Surface Mount |
| Frequency | 1.805GHz ~ 1.88GHz |
| Configuration | - |
| Power - Output | 460W |
| Gain | 15.5dB |
| Technology | HEMT |
| Noise Figure | - |
| Supplier Device Package | H-37248C-4 |
| Voltage - Rated | 125 V |
| Voltage - Test | 48 V |
| Current - Test | 150 mA |
