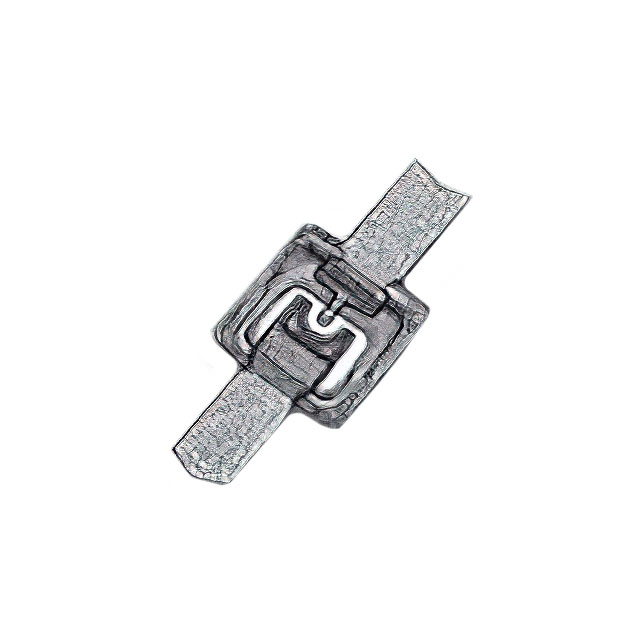

MSS20-141-B10D
SCHOTTKY DIODE,BEAMLEAD, B10DManufacturer: MACOM Technology Solutions
Categories: RF Diodes
Quality Control: Learn More
MACOM Technology Solutions MSS20-141-B10D is a single Schottky diode featuring a 1V peak reverse voltage and a maximum continuous forward current of 35 mA. This device offers a typical capacitance of 0.08pF at 0V and 1MHz, with a maximum power dissipation of 100 mW. Supplied in a B10D package, the MSS20-141-B10D operates across a wide temperature range from -65°C to 150°C. This component is commonly utilized in RF applications across various industries, including telecommunications, defense, and aerospace.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | B10D |
| Diode Type | Schottky - Single |
| Operating Temperature | -65°C ~ 150°C |
| Capacitance @ Vr, F | 0.08pF @ 0V, 1MHz |
| Resistance @ If, F | - |
| Voltage - Peak Reverse (Max) | 1V |
| Supplier Device Package | B10D |
| Current - Max | 35 mA |
| Power Dissipation (Max) | 100 mW |
