MGPN1503-C01A
GAAS PIN DIODESManufacturer: MACOM Technology Solutions
Categories: RF Diodes
Quality Control: Learn More

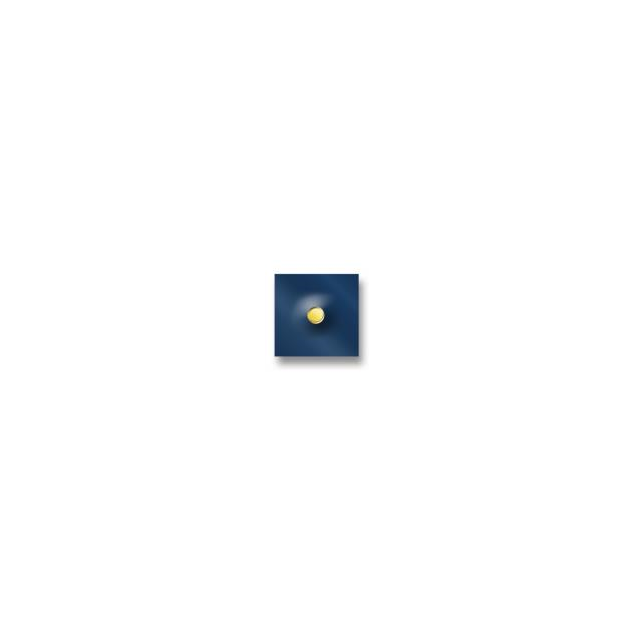

MACOM Technology Solutions MGPN Series GaAs PIN Diode, part number MGPN1503-C01A, is a single PIN diode in a die package. This component is designed for high-frequency applications, offering a low capacitance of 0.03pF at 10V and 1MHz. It handles a maximum continuous forward current of 10 mA and a peak reverse voltage of 205V. The diode exhibits a low on-resistance of 3 Ohms at 20mA and 1GHz. With a maximum power dissipation of 400 mW and an operating junction temperature of 175°C, it provides robust performance. This device is suitable for use in RF switching and attenuator circuits within telecommunications and defense industries. The MGPN1503-C01A is supplied in trays.
Additional Information
Series: MGPNRoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | Die |
| Diode Type | PIN - Single |
| Operating Temperature | 175°C (TJ) |
| Capacitance @ Vr, F | 0.03pF @ 10V, 1MHz |
| Resistance @ If, F | 3Ohm @ 20mA, 1GHz |
| Voltage - Peak Reverse (Max) | 205V |
| Supplier Device Package | Chip |
| Current - Max | 10 mA |
| Power Dissipation (Max) | 400 mW |
